X124A - s-rhd-sop8

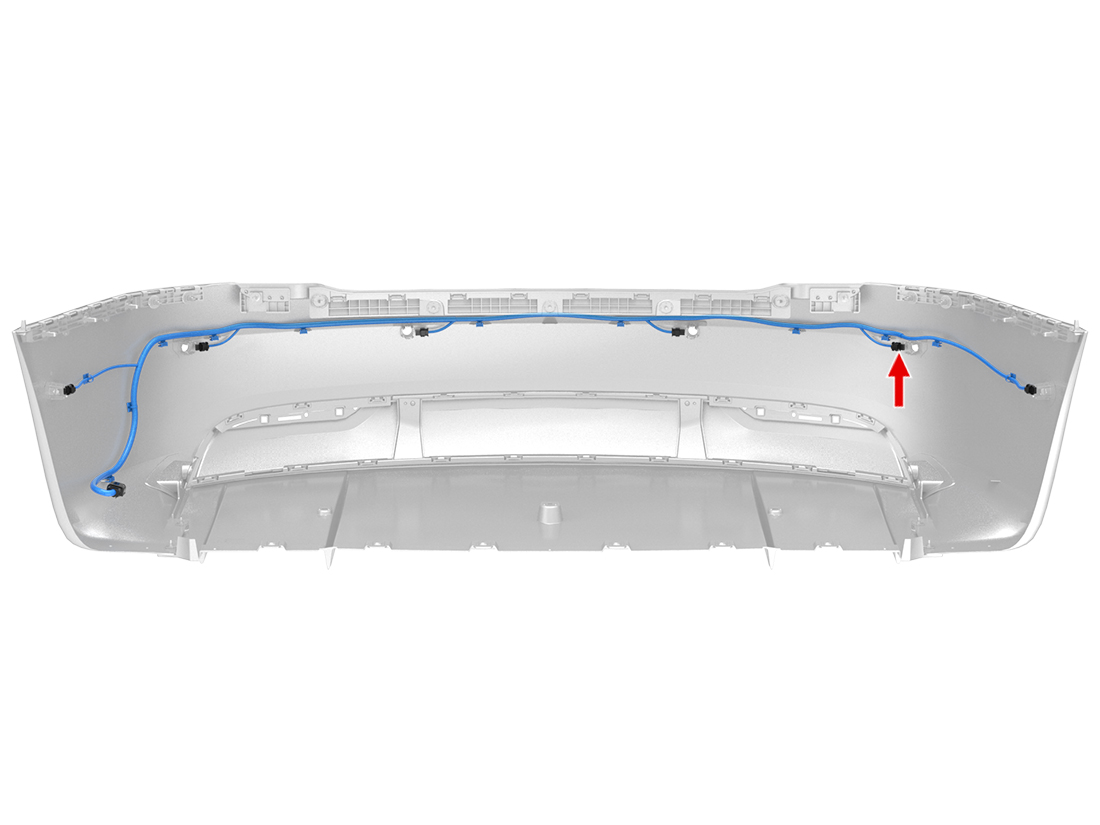

Location:
Connector Detail: hirschmann_805-121-521
Gender: UNSPEC
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | GN/WH | 0.35 |
| 2 | YE/WH | 0.35 |
| 3 | BK/WH | 0.35 |
