X129B - s-rhd-sop8

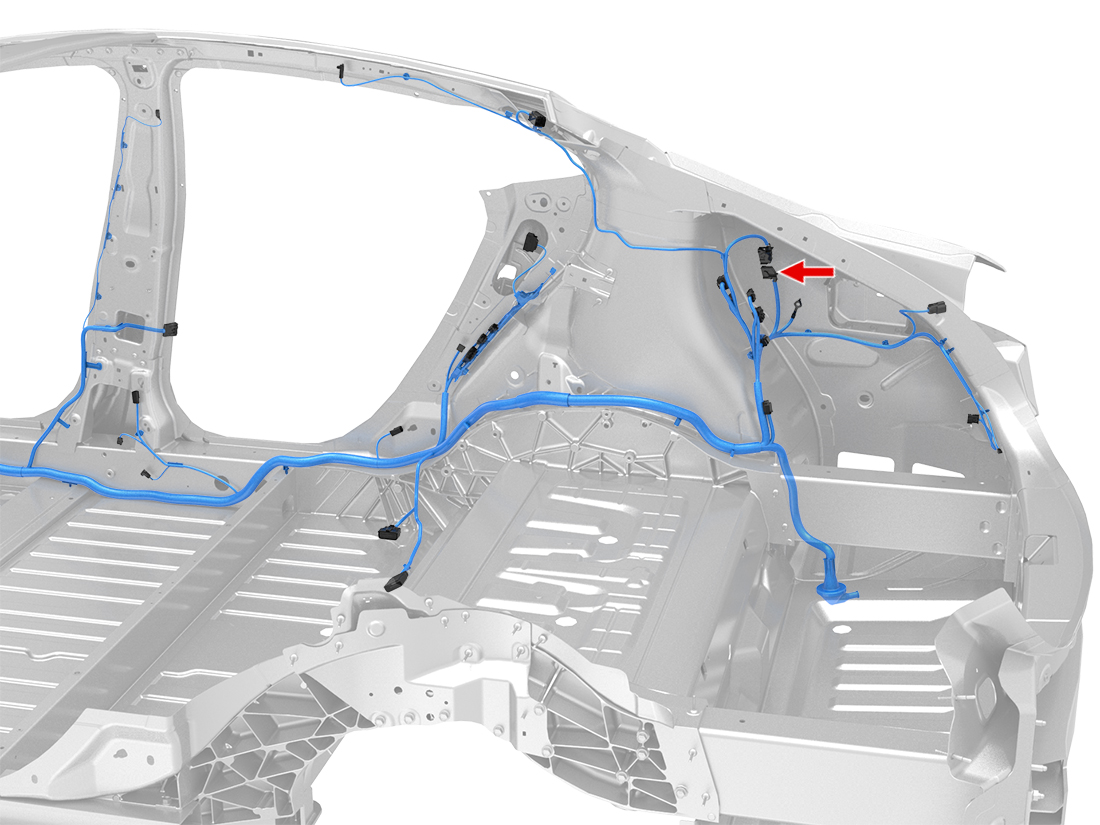

Location:
Connector Detail: amp_1379101-1
Gender: UNSPEC
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 2 | RD/YE | 0.35 |
| 3 | WH | 0.35 |
| 4 | OG/BK | 0.35 |
| 6 | GY | 0.35 |
| 10 | RD/VT | 0.35 |
| 11 | RD/GN | 0.35 |
| 12 | BN/WH | 0.35 |
| 13 | BU/WH | 0.35 |
| 14 | BN | 0.35 |
| 15 | GY/WH | 0.35 |
