X130B - s-rhd-sop8

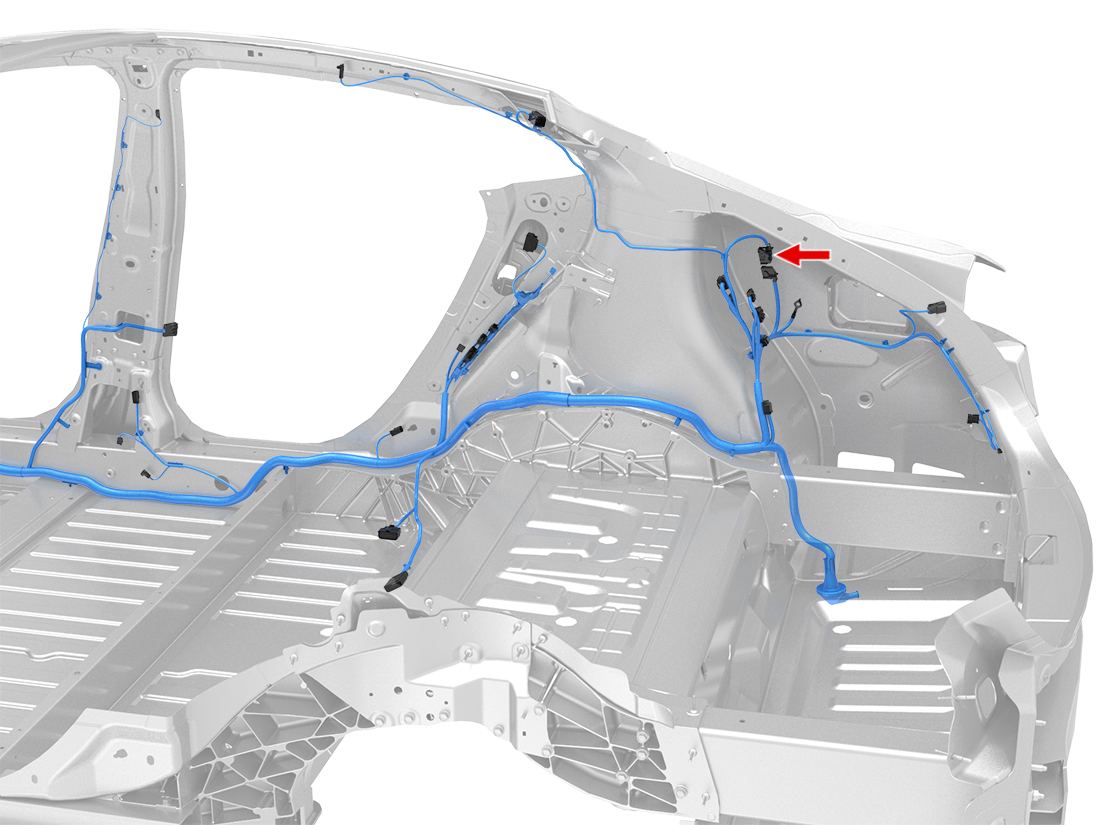

Location:
Connector Detail: amp_185879-1
Gender: UNSPEC
Color: Yellow
| Cav | Col | Gauge |
|---|---|---|
| 6 | YE/WH | 0.35 |
| 7 | OG | 0.35 |
| 8 | BU/WH | 0.35 |
| 13 | BK | 0.5 |
| 14 | RD/BU | 0.5 |
| 18 | GN/WH | 0.35 |
| 19 | BN | 0.35 |
| 20 | WH | 0.35 |
| 21 | RD/WH | 0.35 |
| 22 | BK/WH | 0.35 |
| 23 | GN | 0.35 |
| 24 | GN/WH | 0.35 |
