X149 - s-rhd-sop8

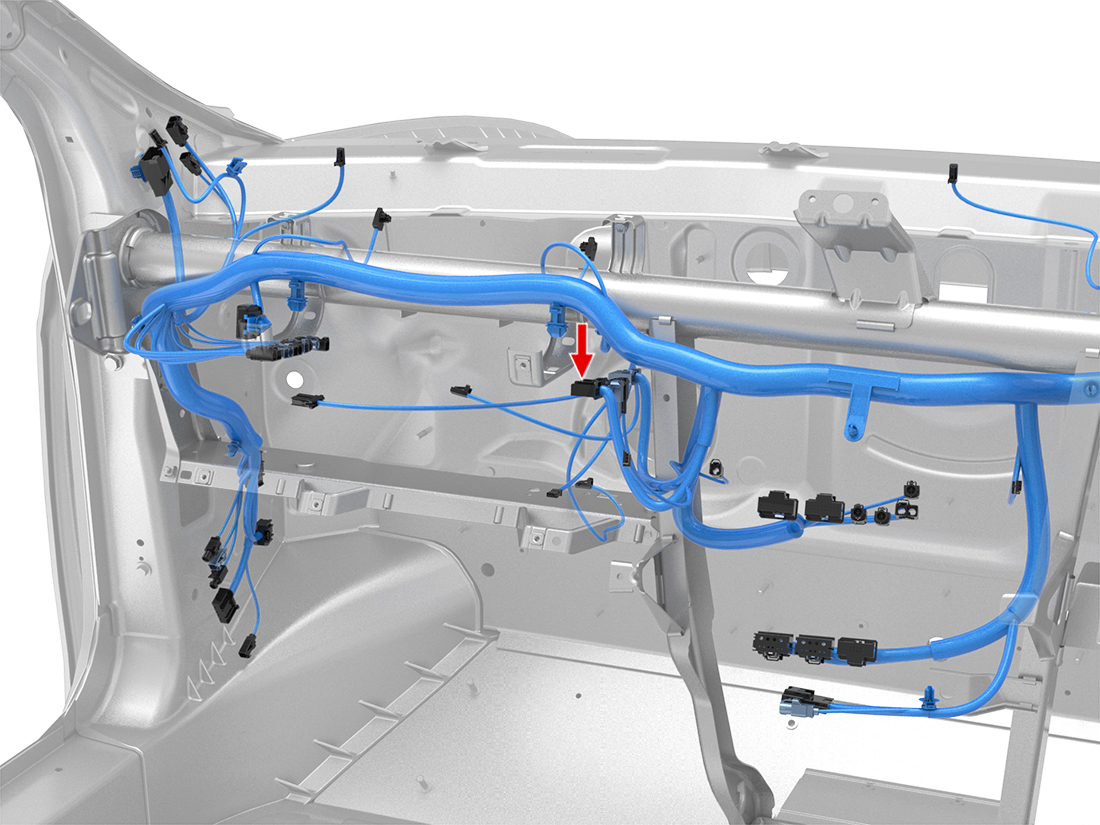

Location:
Connector Detail: sumitomo_6098-5611
Gender:
Color: BU
| Cav | Col | Gauge |
|---|---|---|
| 1 | BK/WH | 0.75 |
| 2 | BK/VT | 0.75 |
| 5 | YE/WH | 0.35 |
| 6 | YE | 0.35 |
| 9 | BU | 2 |
| 11 | WH | 0.75 |
| 12 | VT | 0.75 |
| 17 | BK | 2 |
| 18 | BK | 2 |
