X150 - s-rhd-sop8

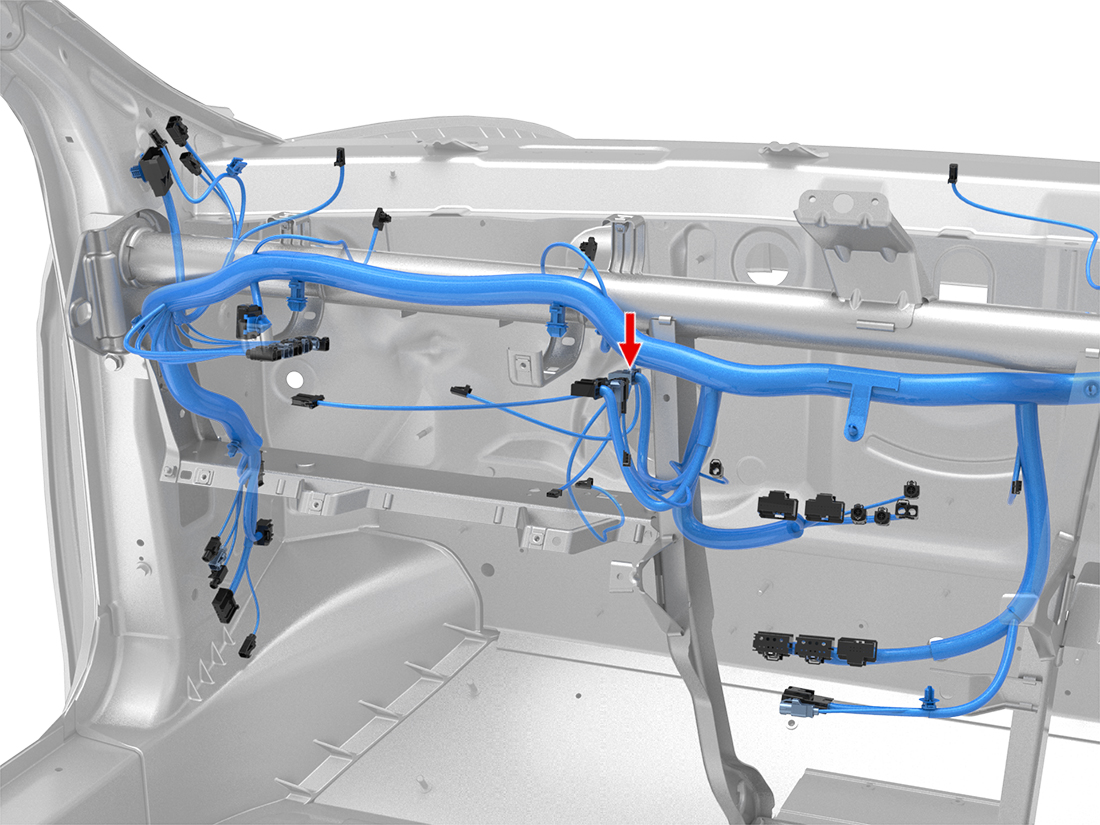

Location:
Connector Detail: sumitomo_6098-4008
Gender:
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 1 | VT/WH | 0.35 |
| 2 | VT | 0.35 |
| 3 | OG/BK | 0.35 |
| 4 | RD/BU | 0.5 |
| 5 | RD | 0.5 |
| 6 | GY | 0.35 |
| 7 | GY/WH | 0.35 |
| 8 | OG | 0.35 |
| 9 | GN/WH | 0.35 |
| 10 | GN | 0.35 |
| 11 | RD/WH | 0.35 |
| 12 | RD | 0.35 |
| 15 | 0 | |
| 16 | BU/WH | 0.5 |
