X189 - s-rhd-sop8

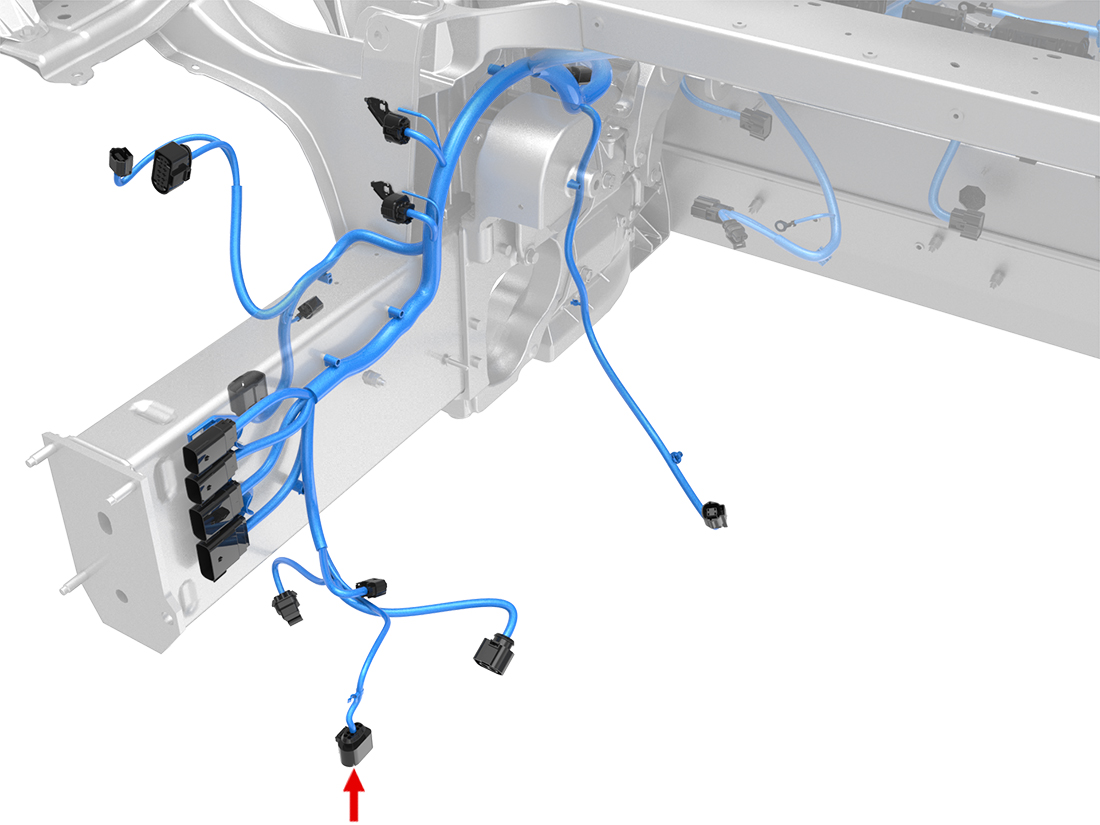

Location:
Connector Detail: fep_42122600
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD | 0.35 |
| 2 | WH | 0.35 |
| 3 | GN | 0.35 |
| 4 | YE | 0.35 |
| 5 | GY | 0.35 |
| 6 | GY/WH | 0.35 |
| 7 | BK/GY | 0.5 |
| 8 | BU | 0.35 |
| 9 | VT | 0.5 |
| 10 | GN/WH | 0.5 |
