X252 - s-rhd-sop8

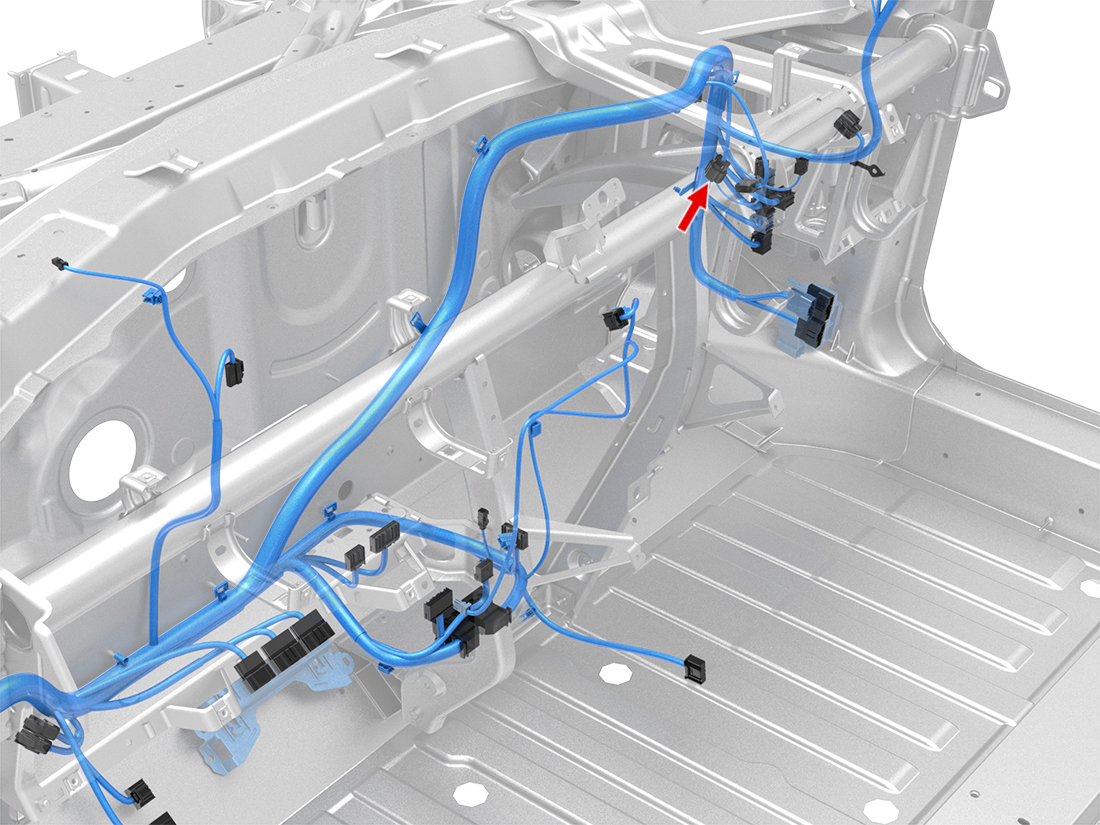

Location:
Connector Detail: molex_31403-6110
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | OG | 0.5 |
| 2 | GY | 0.5 |
| 3 | GN | 0.5 |
| 4 | BK/VT | 0.5 |
| 5 | BU | 0.5 |
| 6 | BU/WH | 0.5 |
2012-2020 Model S Connector Reference
