X262 - s-rhd-sop8

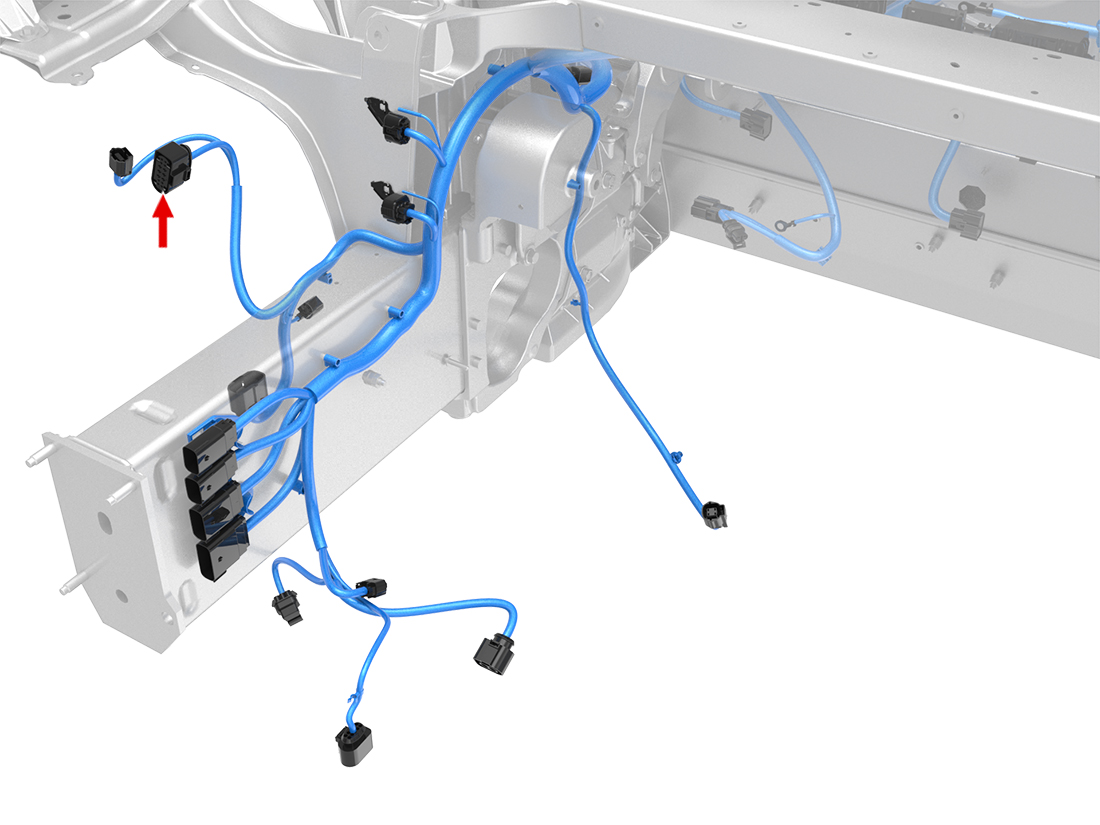

Location:
Connector Detail: amp_1719105-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD/VT | 0.35 |
| 4 | GN | 0.35 |
| 6 | RD/GY | 1 |
| 7 | VT | 0.35 |
| 8 | BK | 1 |
| 9 | BK | 1 |
2012-2020 Model S Connector Reference
