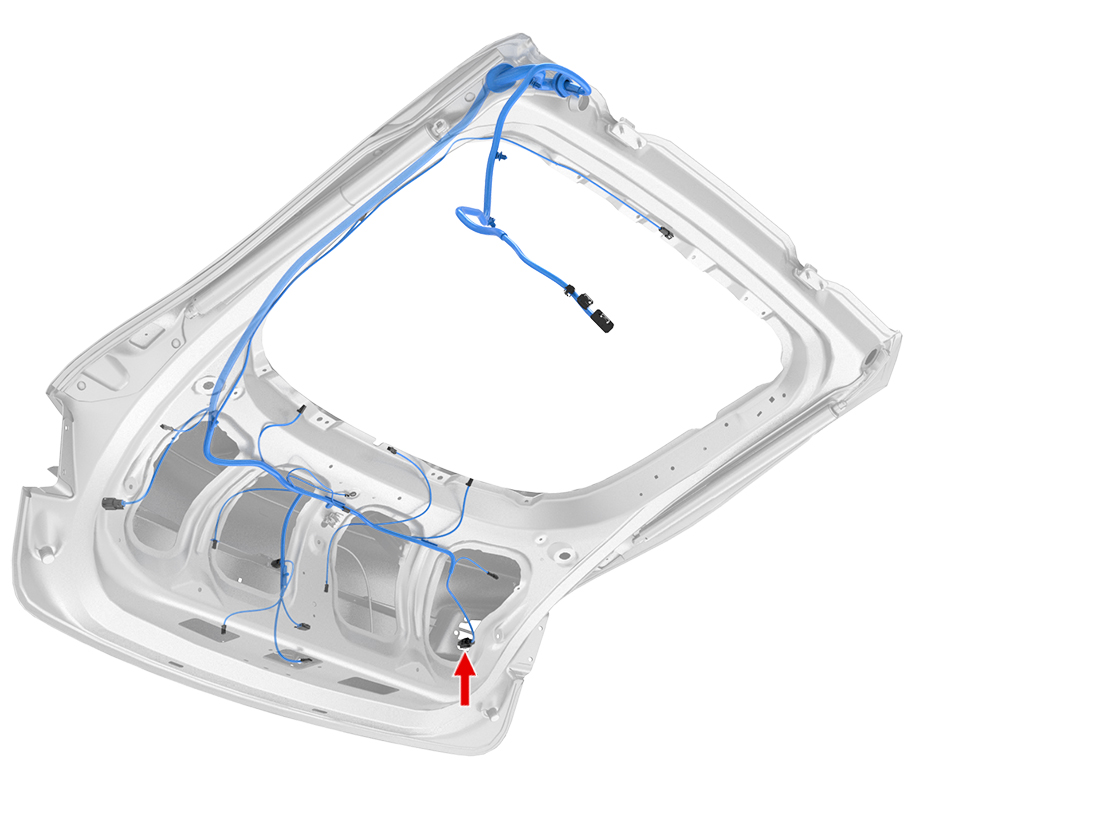

X271 - s-rhd-sop8
Location:
Connector Detail: molex_33472-4001
Gender: UNSPEC
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD/GY | 0.5 |
| 3 | RD/BK | 0.5 |
| 4 | BK | 0.5 |
2012-2020 Model S Connector Reference
