X302 - s-rhd-sop8

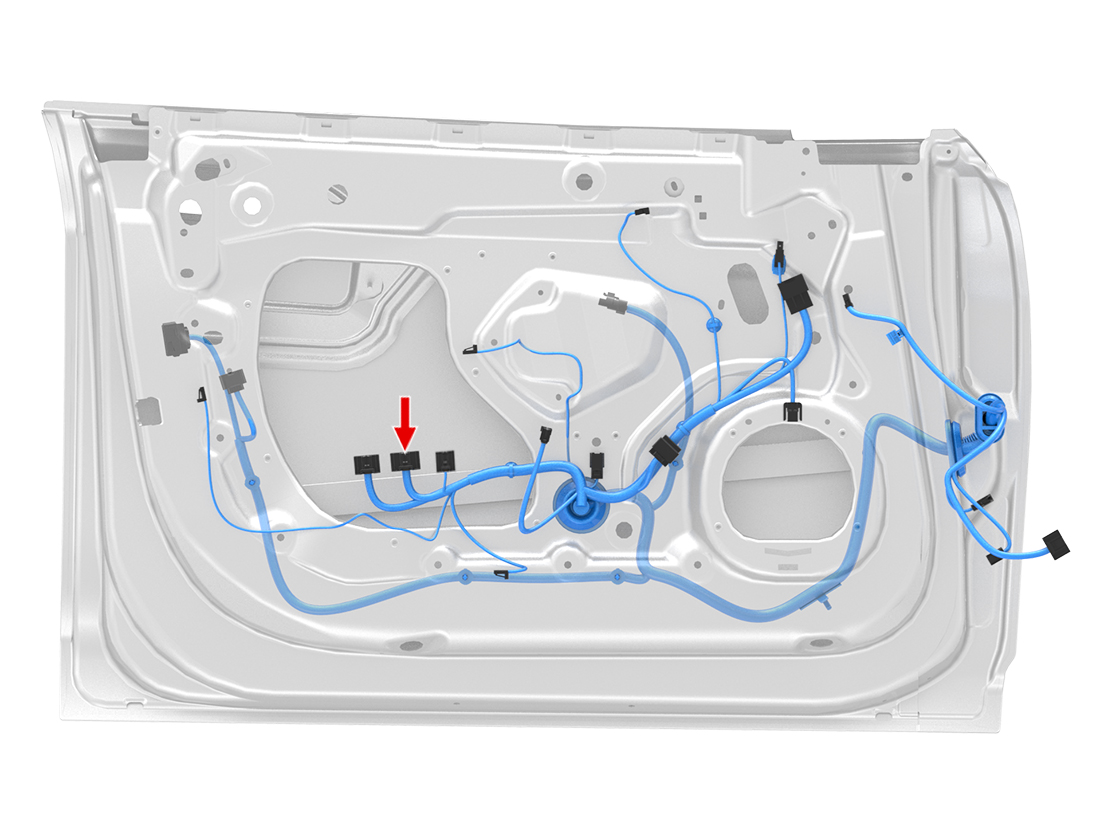

Location:
Connector Detail: jae_mx34028sf1
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 2 | OG | 0.35 |
| 3 | GN | 0.35 |
| 4 | RD/GY | 0.35 |
| 5 | RD/VT | 0.35 |
| 6 | RD/GN | 0.35 |
| 8 | RD/BK | 0.35 |
| 14 | RD | 0.35 |
| 15 | BN | 0.35 |
| 16 | BN/WH | 0.35 |
| 18 | GY | 0.35 |
| 19 | YE/WH | 0.35 |
| 21 | WH/BK | 0.35 |
| 22 | BK | 0.35 |
| 23 | GY/WH | 0.35 |
| 27 | SI | 0.35 |
| 28 | BK | 0.35 |
