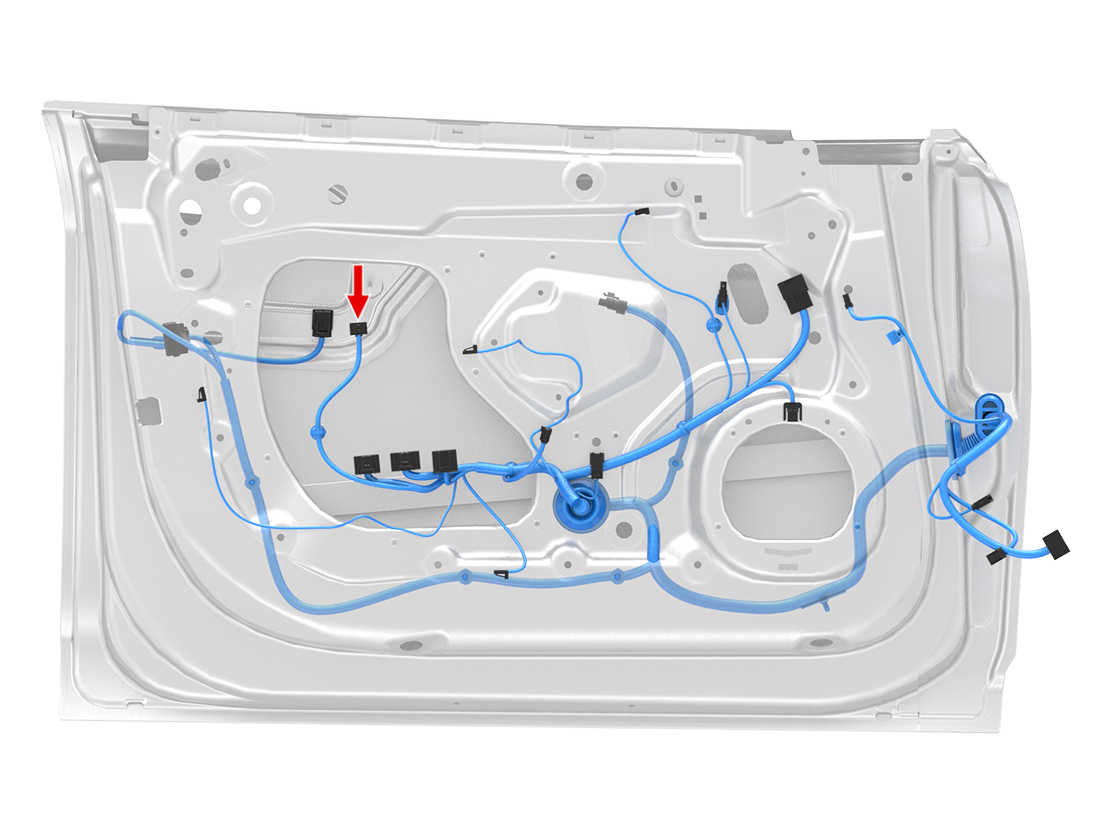

X309 - s-rhd-sop8
Location:
Connector Detail: molex_34824-5124
Gender: UNSPEC
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | GY | 0.35 |
| 2 | BN | 0.35 |
| 3 | WH | 0.35 |
| 4 | WH/BU | 0.35 |
| 5 | BK/WH | 0.35 |
| 6 | RD/WH | 0.35 |
| 7 | OG | 0.35 |
| 8 | GN | 0.35 |
| 11 | RD | 0.35 |
| 12 | BK | 0.35 |
