X311 - s-rhd-sop8

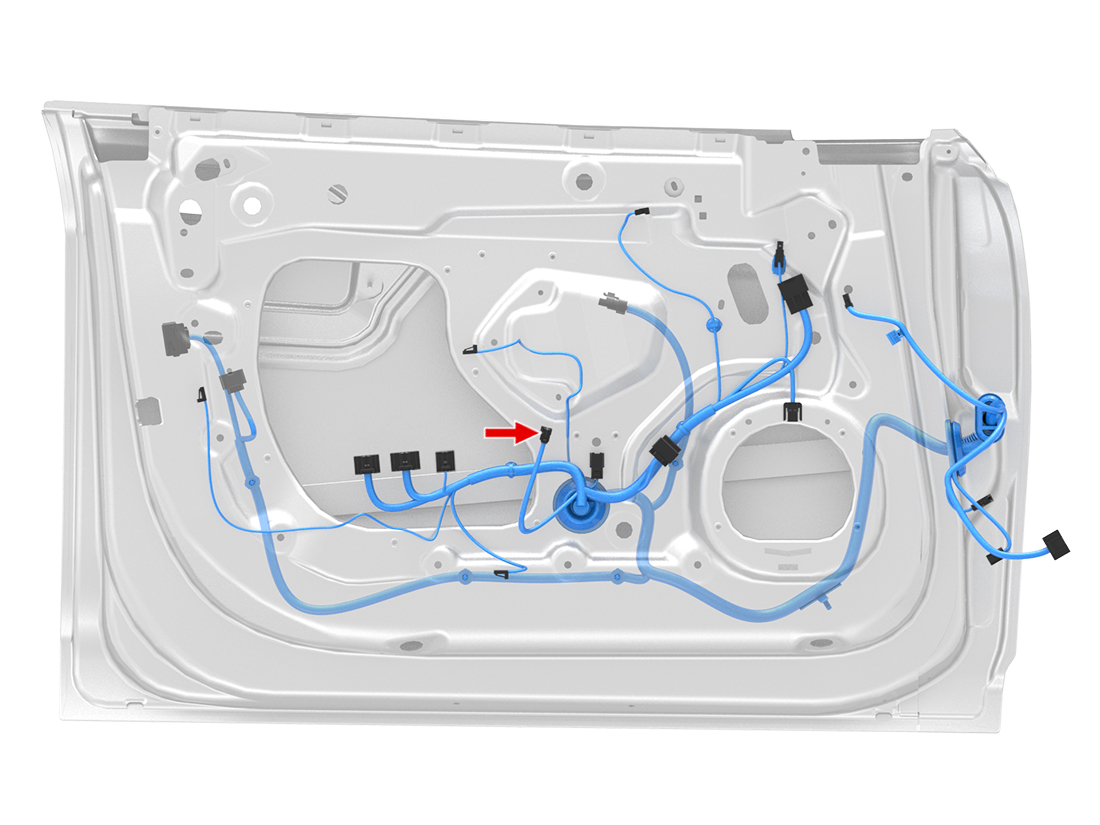

Location:
Connector Detail: amp_2-929170-4
Gender: UNSPEC
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH/RD | 0.5 |
| 2 | BK | 0.35 |
| 3 | GY | 0.35 |
| 4 | BU | 0.5 |
2012-2020 Model S Connector Reference
