X337 - s-rhd-sop8

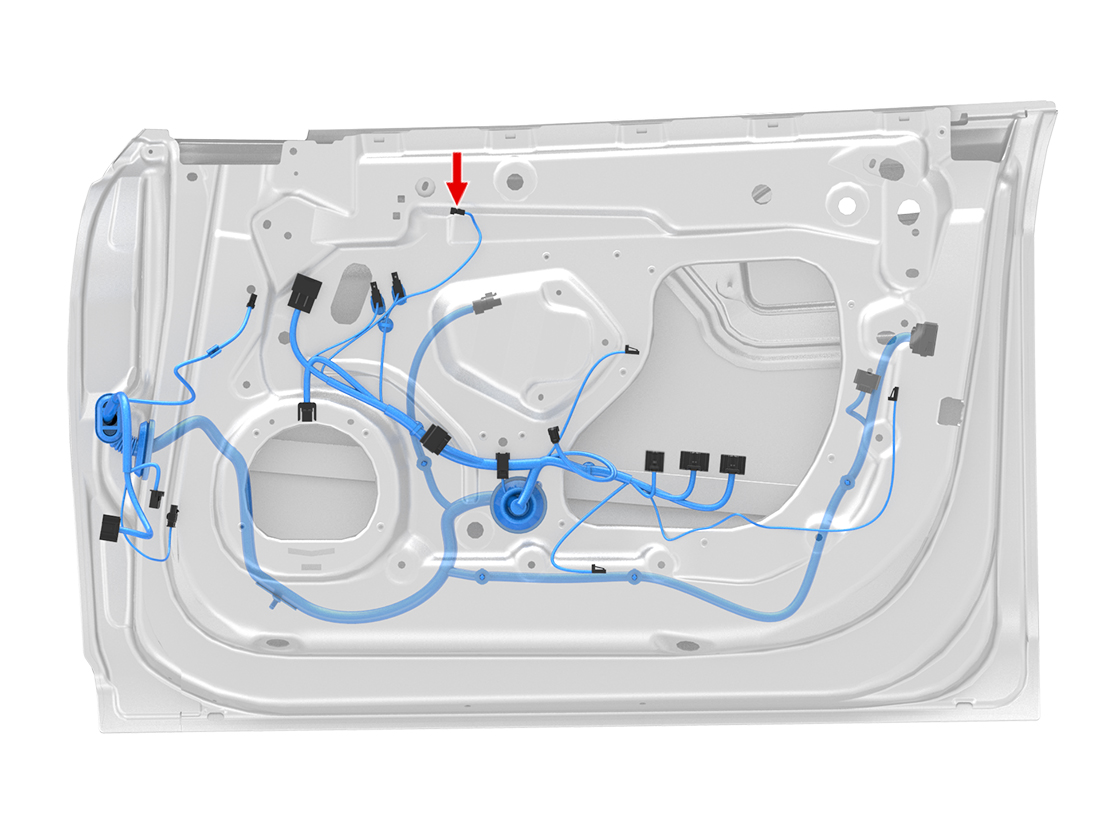

Location:
Connector Detail: amp_1-1718333-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | BK | 0.35 |
| 2 | YE/WH | 0.35 |
