X346 - s-rhd-sop8

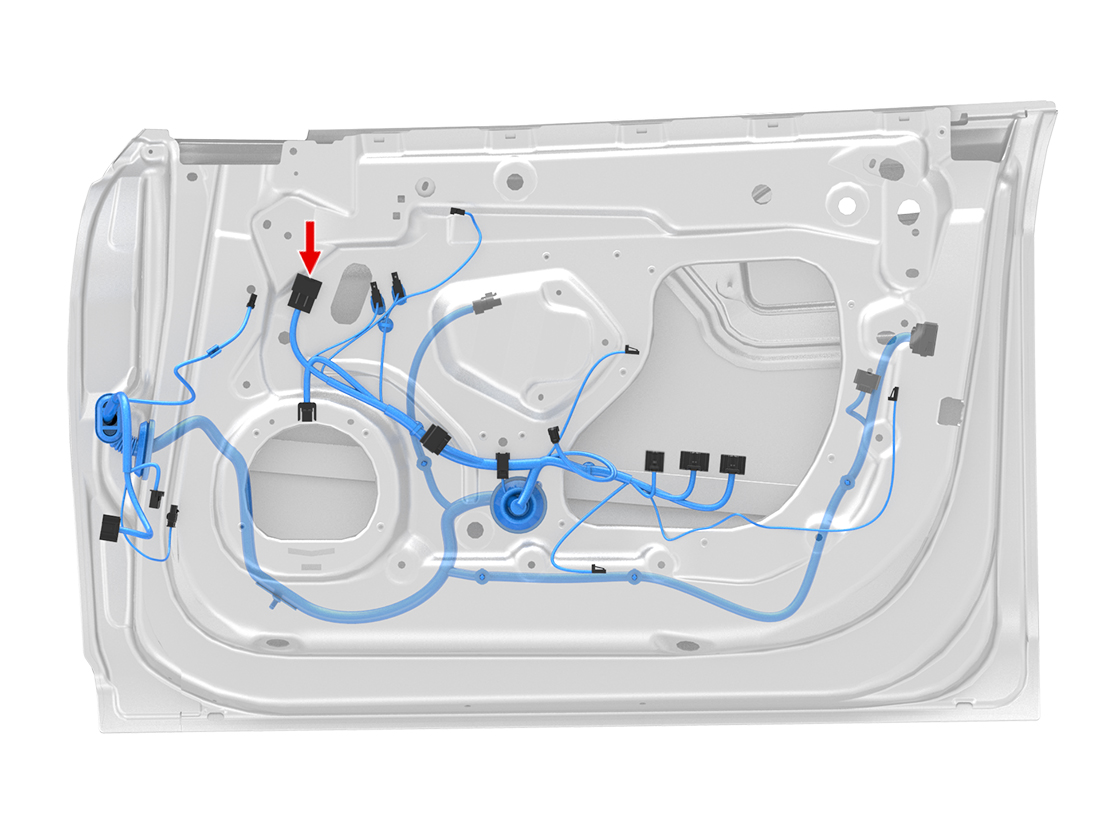

Location:
Connector Detail: yazaki_7282-6568-40
Gender:
Color: LightGray
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD/GY | 0.35 |
| 2 | RD/YE | 0.35 |
| 3 | BU | 0.35 |
| 5 | RD/BK | 0.35 |
| 6 | OG | 0.35 |
| 7 | RD/VT | 0.35 |
| 8 | RD/GN | 0.35 |
| 10 | BN | 0.35 |
| 11 | VT | 0.35 |
| 12 | WH/BU | 0.35 |
| 15 | BK | 0.35 |
| 16 | GN | 0.35 |
| 17 | YE/WH | 0.35 |
| 18 | WH/BK | 0.35 |
| 20 | YE | 0.35 |
