X388 - s-rhd-sop8

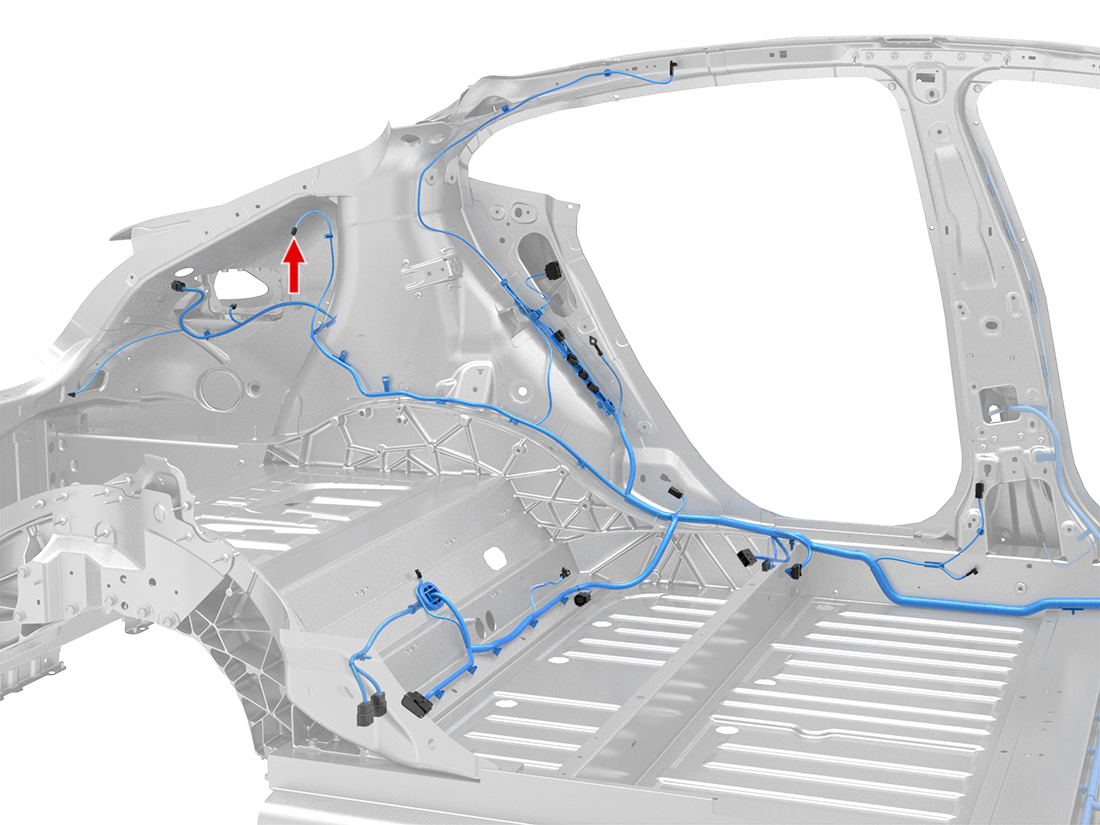

Location:
Connector Detail: amp_2-929170-1
Gender:
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 1 | OG | 0.35 |
| 2 | BK | 0.35 |
| 3 | BU | 0.35 |
2012-2020 Model S Connector Reference
