X436 - s-rhd-sop8

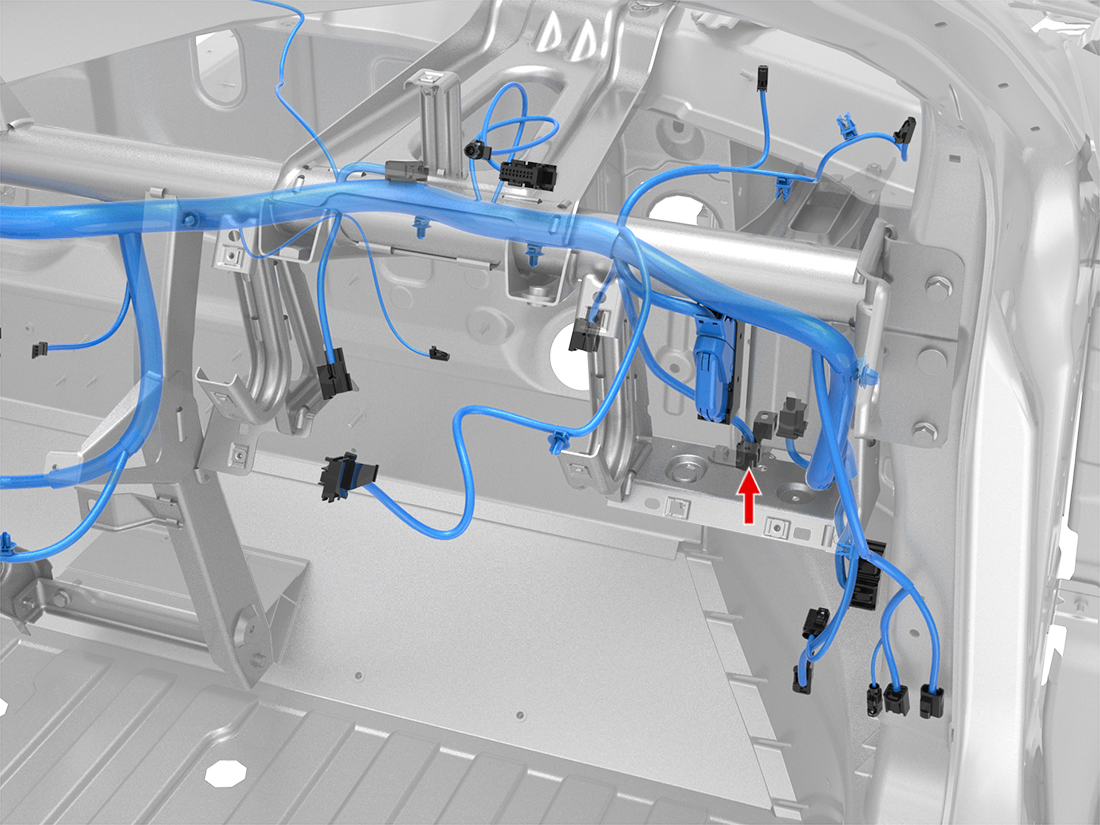

Location:
Connector Detail: delphi_12110250
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | GN/WH | 0.5 |
| 4 | BK | 0.5 |
| 5 | BK | 0.5 |
| 6 | BU/WH | 0.5 |
| 7 | OG/BK | 0.5 |
| 9 | GN | 0.5 |
| 14 | BU | 0.5 |
| 16 | RD | 0.5 |
2012-2020 Model S Connector Reference
