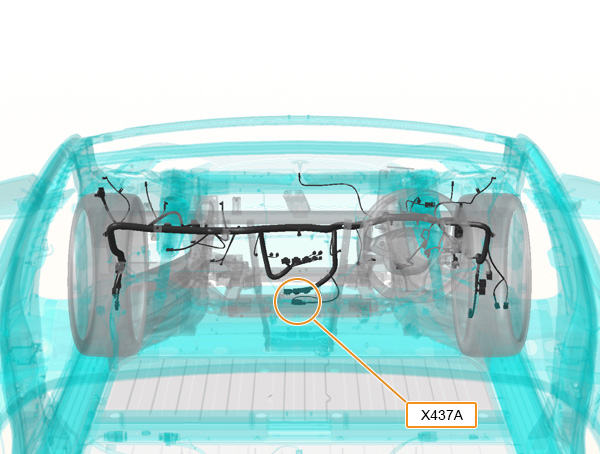

X437A - s-rhd-sop8
Location:
Connector Detail: sumitomo_6098-5620
Gender:
Color: BU
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD | 0.5 |
| 2 | VT/WH | 0.35 |
| 3 | VT | 0.35 |
| 6 | OG/BK | 0.5 |
| 9 | BN/WH | 0.35 |
| 10 | BN | 0.35 |
| 13 | GN/WH | 0.35 |
| 14 | GN | 0.35 |
| 18 | RD/WH | 0.35 |
| 19 | RD | 0.35 |
| 20 | BK | 0.5 |
