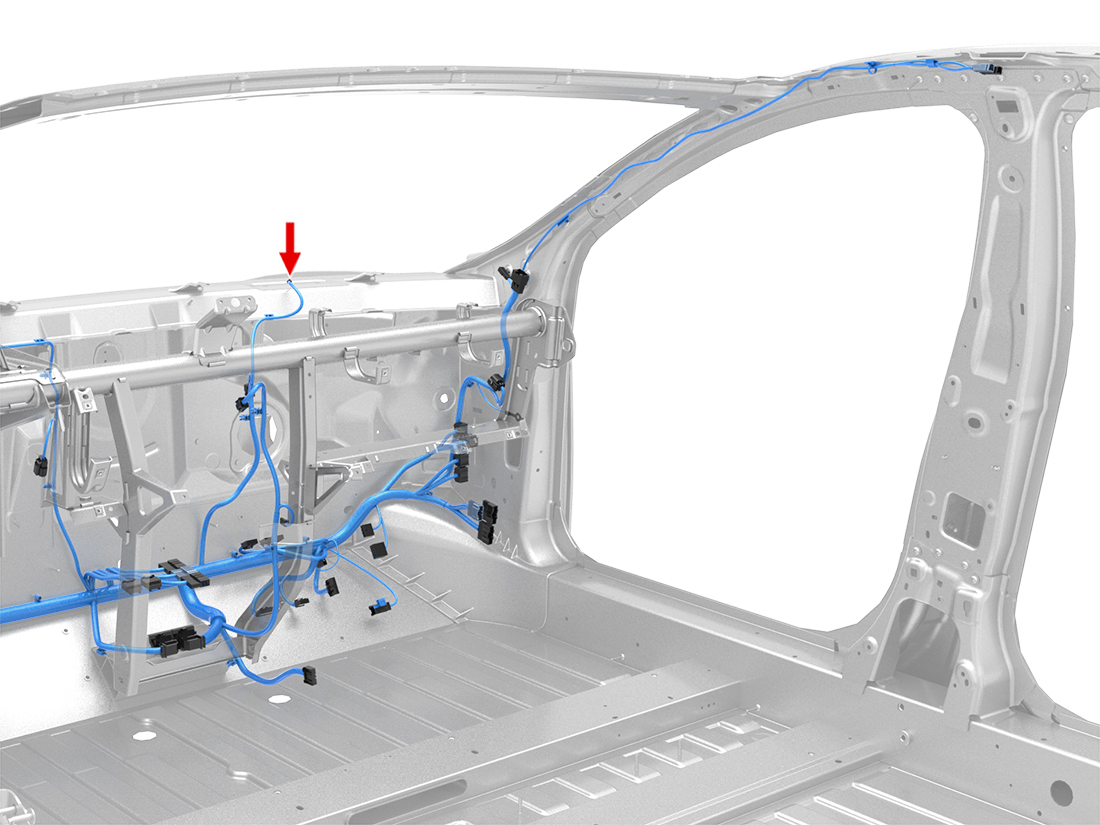

X484 - s-rhd-sop8
Location:
Connector Detail: jst_03r-jwpf-vsle-s
Gender:
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD | 0.35 |
| 2 | SI | 0.35 |
| 3 | BK | 0.35 |
2012-2020 Model S Connector Reference
