X535 - s-rhd-sop8

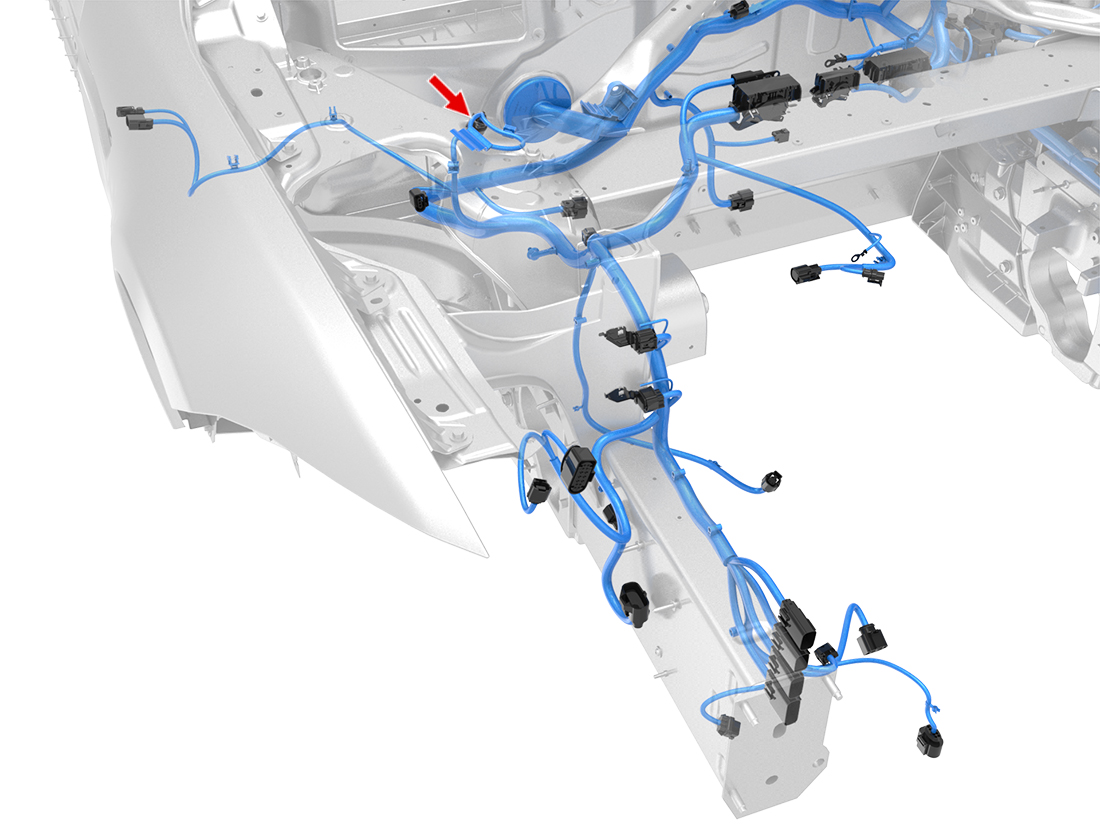

Location:
Connector Detail: molex_33482-0601
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD | 0.75 |
| 2 | GN | 0.75 |
| 3 | RD | 0.75 |
| 4 | GN | 0.75 |
2012-2020 Model S Connector Reference
