X763 - s-rhd-sop8

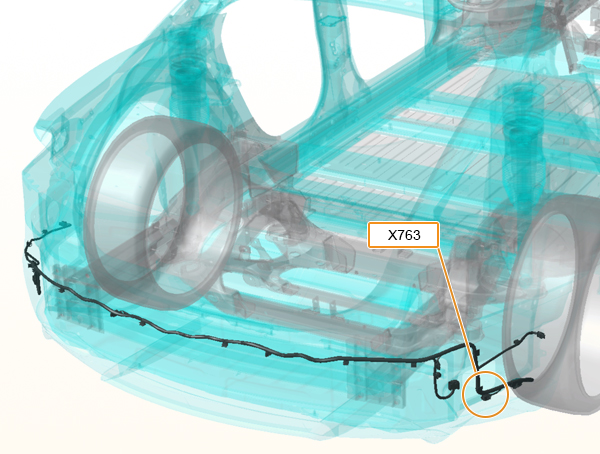

Location:
Connector Detail: yazaki_7283-2764-30
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | VT | 0.5 |
| 2 | VT | 0.5 |
| 3 | VT | 0.5 |
| 4 | VT/WH | 0.5 |
| 5 | VT/WH | 0.5 |
| 6 | VT/WH | 0.5 |
