X773 - s-rhd-sop8

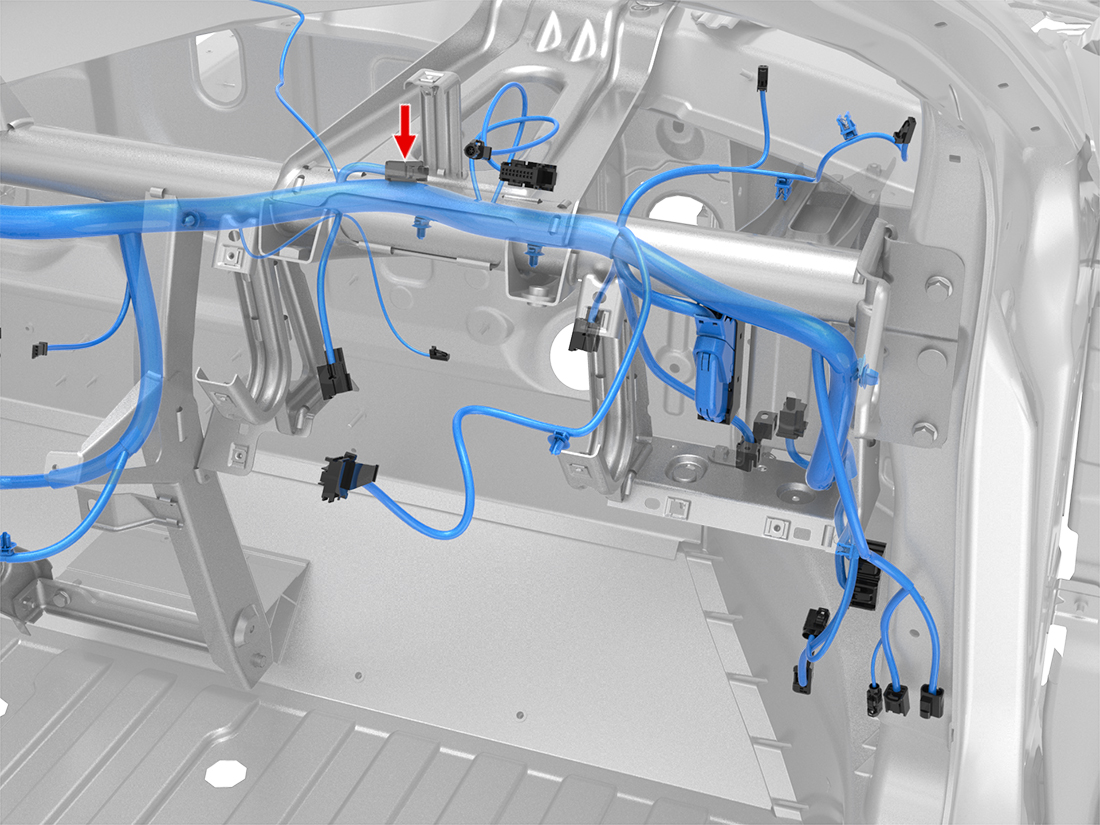

Location:

Connector Detail: sumitomo_6098-3926

Gender:

Color: BK

Cav	Col	Gauge
2	GN	0.35
3	GN	0.35
4	GN	0.35
5	GN	0.5
6	GN	0.35
7	BN	0.35
8	BN	0.35
9	BN	0.35
10	BN	0.35
13	GN/WH	0.35
14	GN/WH	0.35
15	GN/WH	0.35
16	GN/WH	0.5
17	GN/WH	0.35
18	BN/WH	0.35
19	BN/WH	0.35
20	BN/WH	0.35
21	BN/WH	0.35
