X921F - s-rhd-sop8

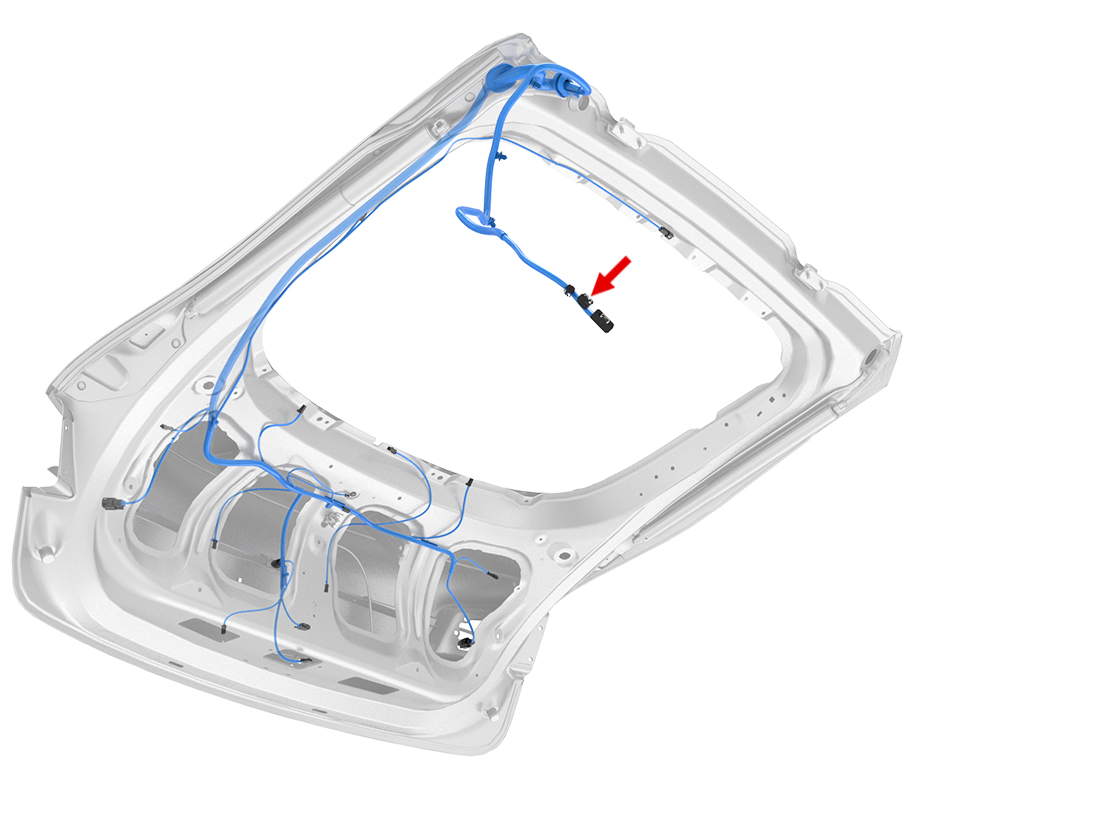

Location:
Connector Detail: sumitomo_6098-3917
Gender:
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH/RD | 0.35 |
| 2 | WH/BU | 0.35 |
| 3 | BN | 0.35 |
| 4 | OG | 0.35 |
| 5 | RD/GY | 0.5 |
| 6 | RD/BK | 0.5 |
| 8 | GY/WH | 0.35 |
| 9 | BU | 0.35 |
| 11 | WH/BK | 0.5 |
| 12 | BN/WH | 0.5 |
| 13 | VT | 0.5 |
