X929M - s-rhd-sop8

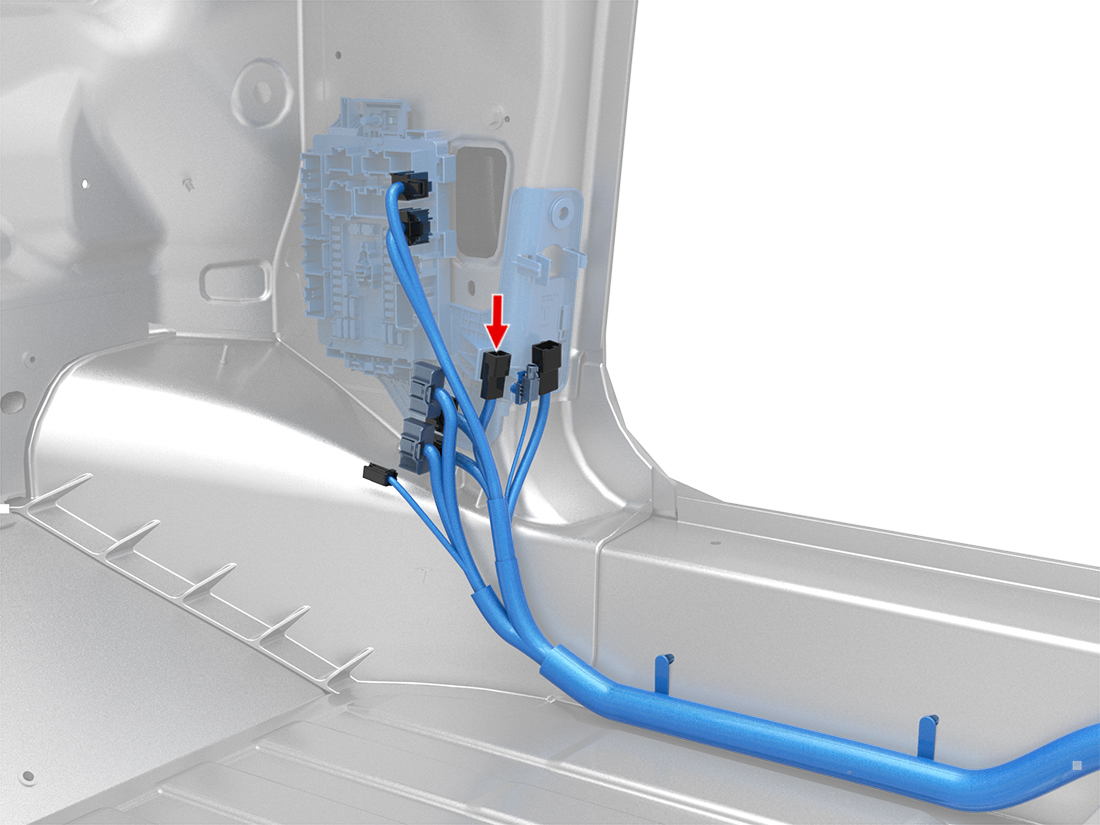

Location:
Connector Detail: sumitomo_6098-3869
Gender:
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 1 | YE | 0.35 |
| 2 | BN/WH | 0.35 |
| 3 | OG | 0.35 |
| 4 | BK/GY | 0.35 |
| 6 | VT | 0.35 |
| 7 | GY/WH | 0.35 |
| 8 | GY | 0.35 |
| 9 | GN/WH | 0.35 |
