X945F - s-rhd-sop8

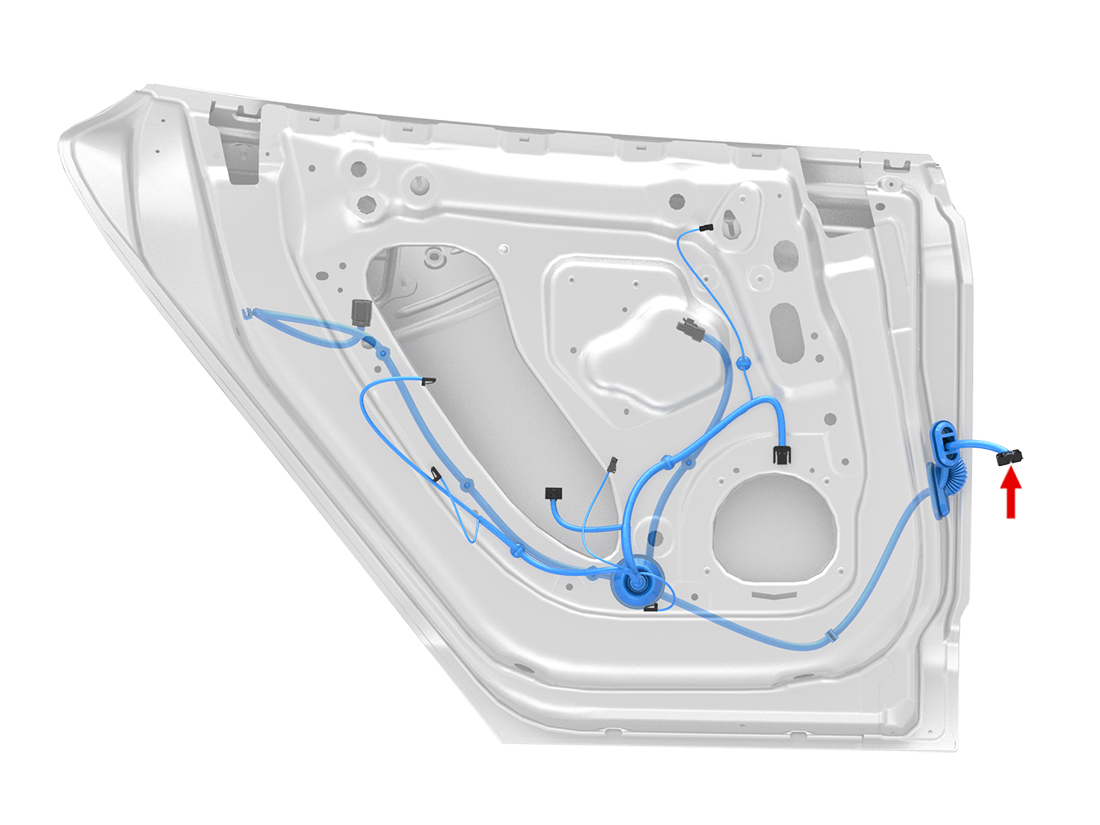

Location:
Connector Detail: sumitomo_6098-5609
Gender:
Color: GY
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD/GN | 1.5 |
| 2 | BU | 0.35 |
| 4 | WH | 0.5 |
| 7 | RD/BU | 0.35 |
| 8 | RD/WH | 0.35 |
| 9 | VT | 0.35 |
| 10 | RD/WH | 1.5 |
| 11 | BK | 2 |
| 12 | GN/WH | 0.35 |
| 16 | GY | 0.35 |
| 17 | VT/WH | 0.5 |
| 18 | GY | 1.5 |
2012-2020 Model S Connector Reference
