X953M - s-rhd-sop8

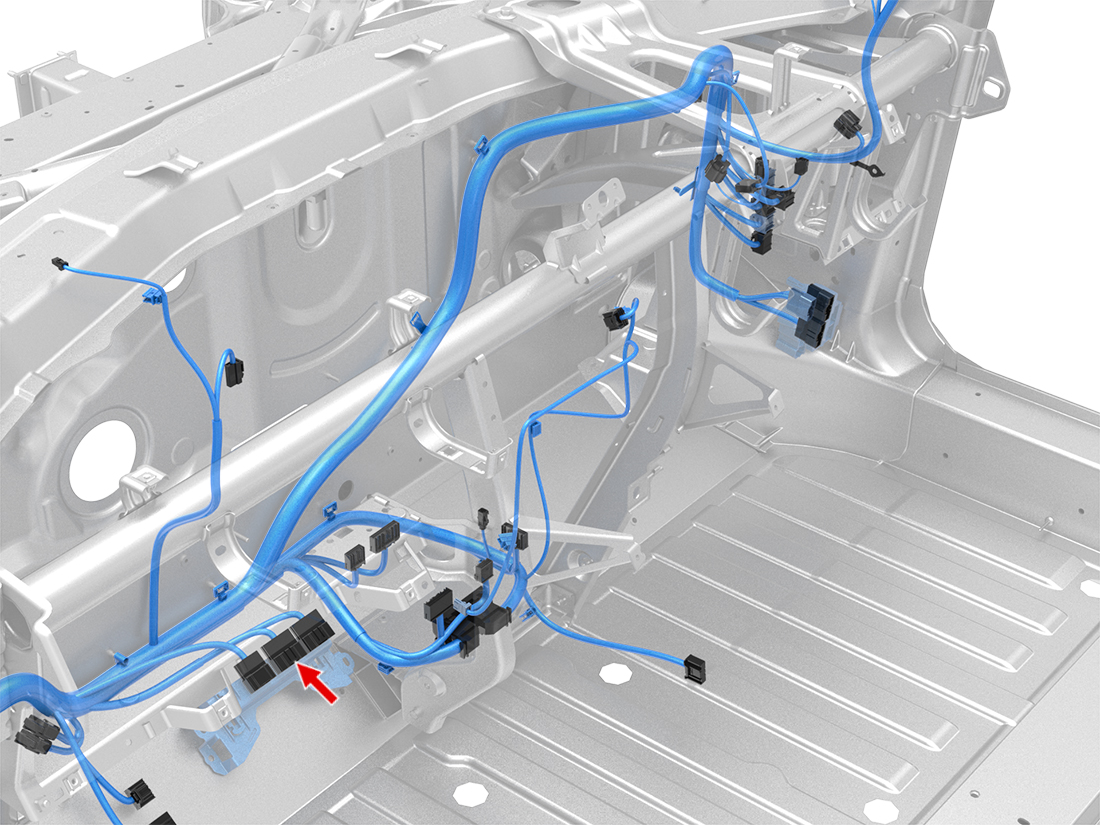

Location:
Connector Detail: yazaki_7286-1918
Gender: UNSPEC
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD/GN | 2 |
| 4 | RD/GN | 0.35 |
| 5 | RD/VT | 0.35 |
| 6 | BU | 0.35 |
| 9 | WH/BK | 0.5 |
| 11 | YE/WH | 0.5 |
| 11 | YE/WH | 0.5 |
| 12 | YE | 0.5 |
| 13 | RD/BK | 0.5 |
| 14 | GN | 0.75 |
| 15 | RD/BU | 0.5 |
| 16 | RD/BU | 0.35 |
| 17 | GY | 0.35 |
| 18 | BK/VT | 0.5 |
| 19 | RD/YE | 0.35 |
| 20 | RD/VT | 0.5 |
| 23 | BN | 0.5 |
| 24 | RD/GY | 0.35 |
| 25 | RD/BK | 0.35 |
