X955M - s-rhd-sop8

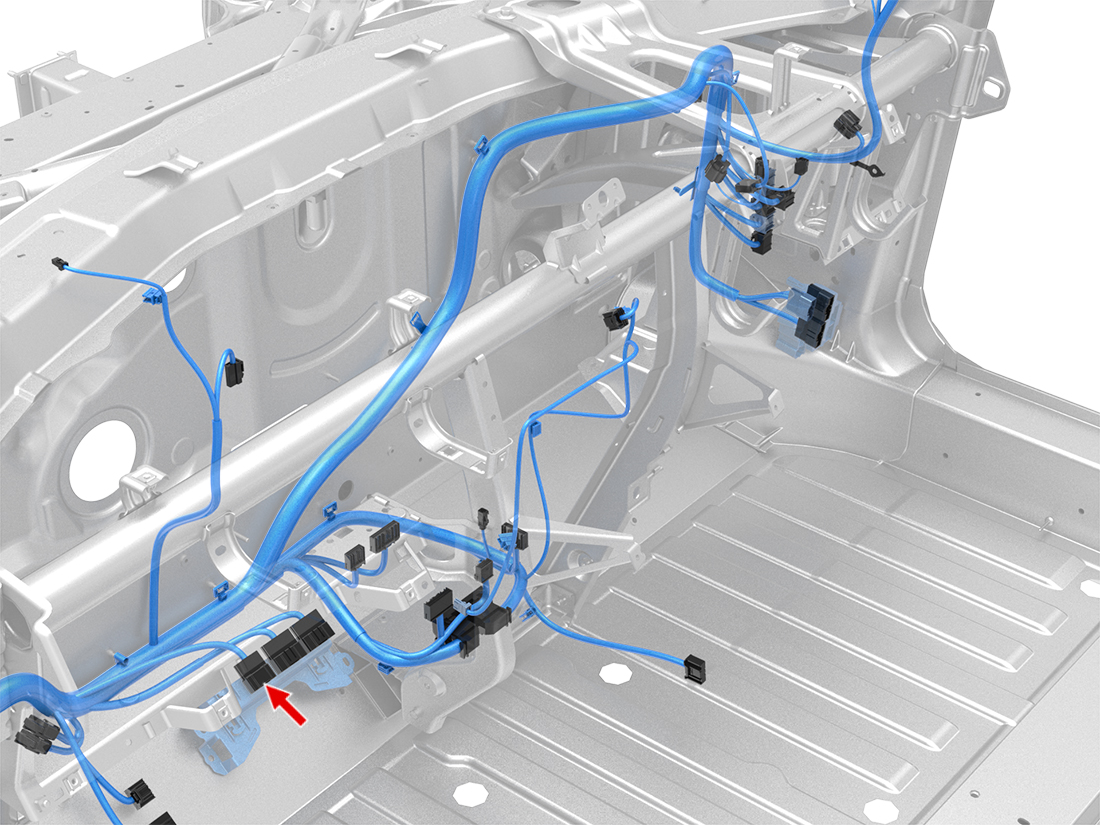

Location:
Connector Detail: sumitomo_6098-5618
Gender:
Color: GY
| Cav | Col | Gauge |
|---|---|---|
| 1 | GY | 0.35 |
| 2 | WH/BU | 0.35 |
| 3 | WH/RD | 0.35 |
| 5 | YE/WH | 0.35 |
| 6 | GN/WH | 0.35 |
| 9 | RD | 0.5 |
| 10 | VT | 0.5 |
| 11 | RD/BK | 0.5 |
| 12 | RD/GY | 0.75 |
| 13 | GY/WH | 0.35 |
| 14 | RD/BU | 0.35 |
| 15 | YE | 0.35 |
| 16 | GN | 0.35 |
| 18 | RD | 0.5 |
| 19 | RD/GN | 0.5 |
| 20 | VT | 0.75 |
