X963F - s-rhd-sop8

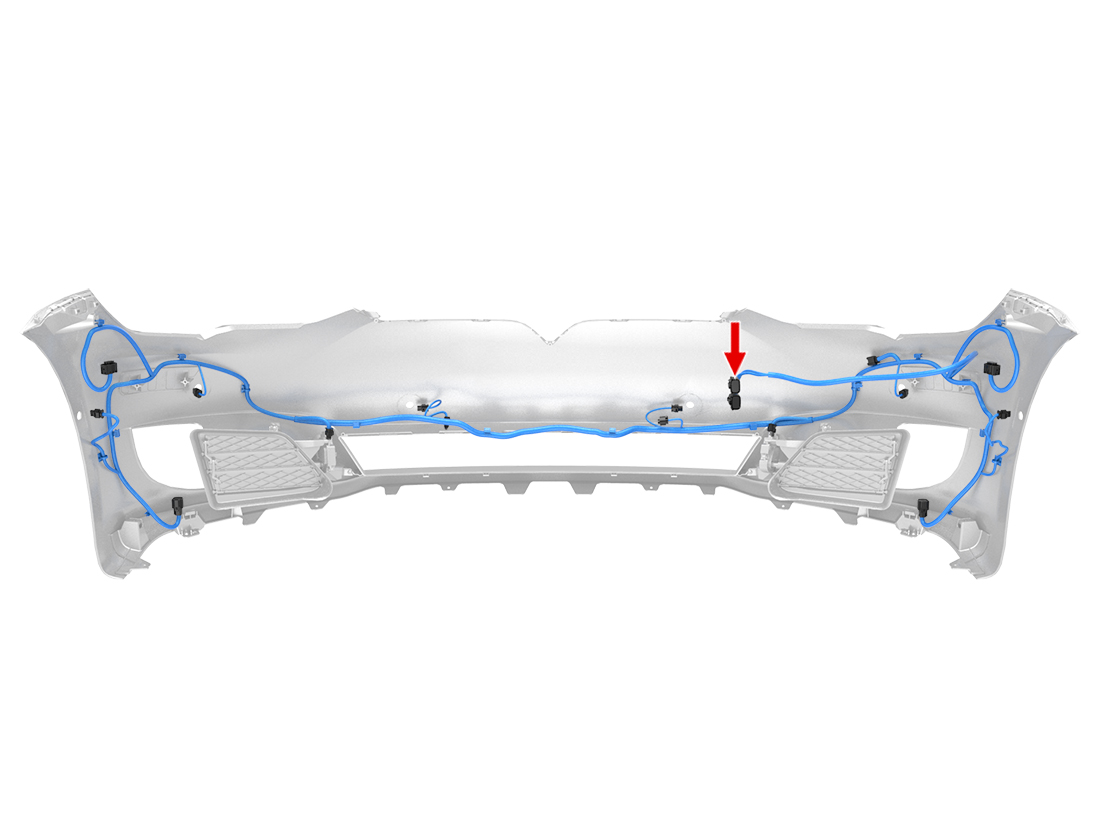

Location:
Connector Detail: molex_33472-1201
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | BN | 0.35 |
| 2 | RD/VT | 0.35 |
| 3 | RD/GN | 0.35 |
| 4 | WH | 0.35 |
| 5 | BN/WH | 0.35 |
| 6 | OG/BK | 0.35 |
| 7 | RD/YE | 0.35 |
| 8 | BU/WH | 0.35 |
| 9 | OG/BK | 0.5 |
| 10 | OG | 0.5 |
2012-2020 Model S Connector Reference
