X964F - s-rhd-sop8

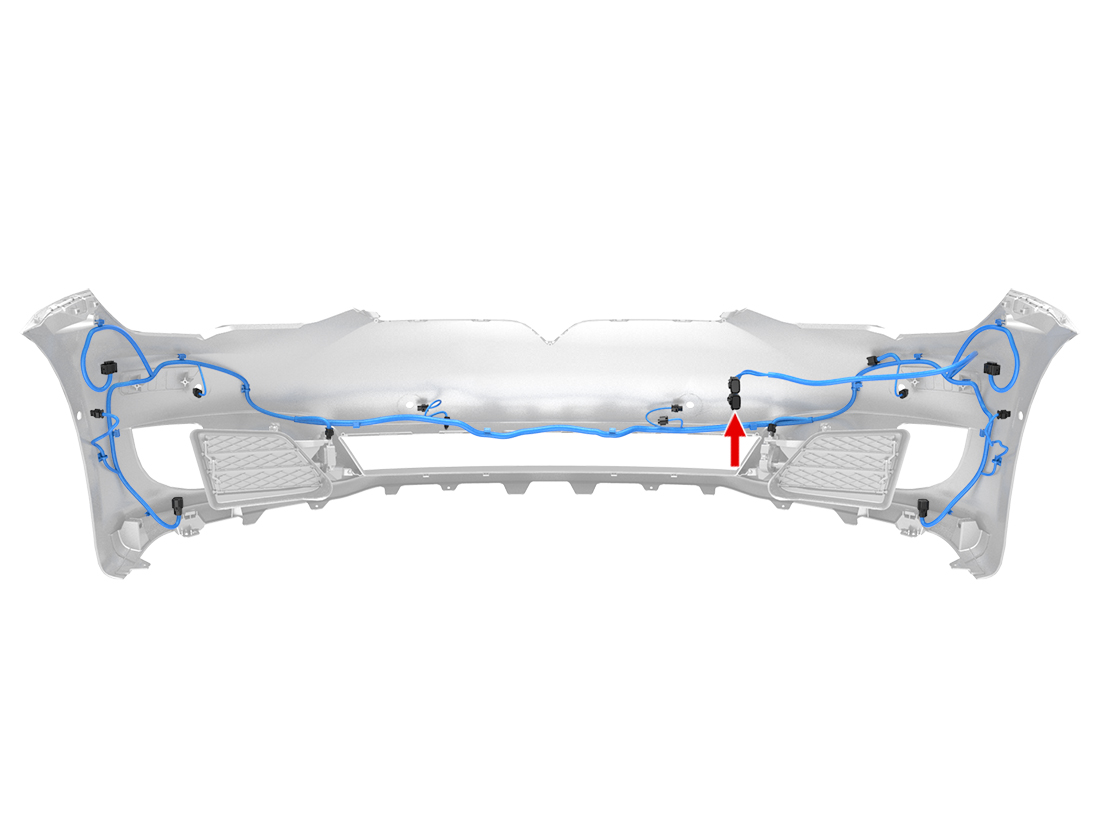

Location:
Connector Detail: molex_33472-1202
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 1 | GN/WH | 0.35 |
| 2 | BU | 0.35 |
| 3 | YE | 0.35 |
| 4 | BU/WH | 0.35 |
| 5 | RD/WH | 0.35 |
| 6 | GN/RD | 0.35 |
| 7 | WH | 0.5 |
| 8 | RD/BU | 0.5 |
| 9 | GN | 0.35 |
| 10 | BN/WH | 0.5 |
| 11 | GY | 0.5 |
| 12 | BK | 0.75 |
