X965M - s-rhd-sop8

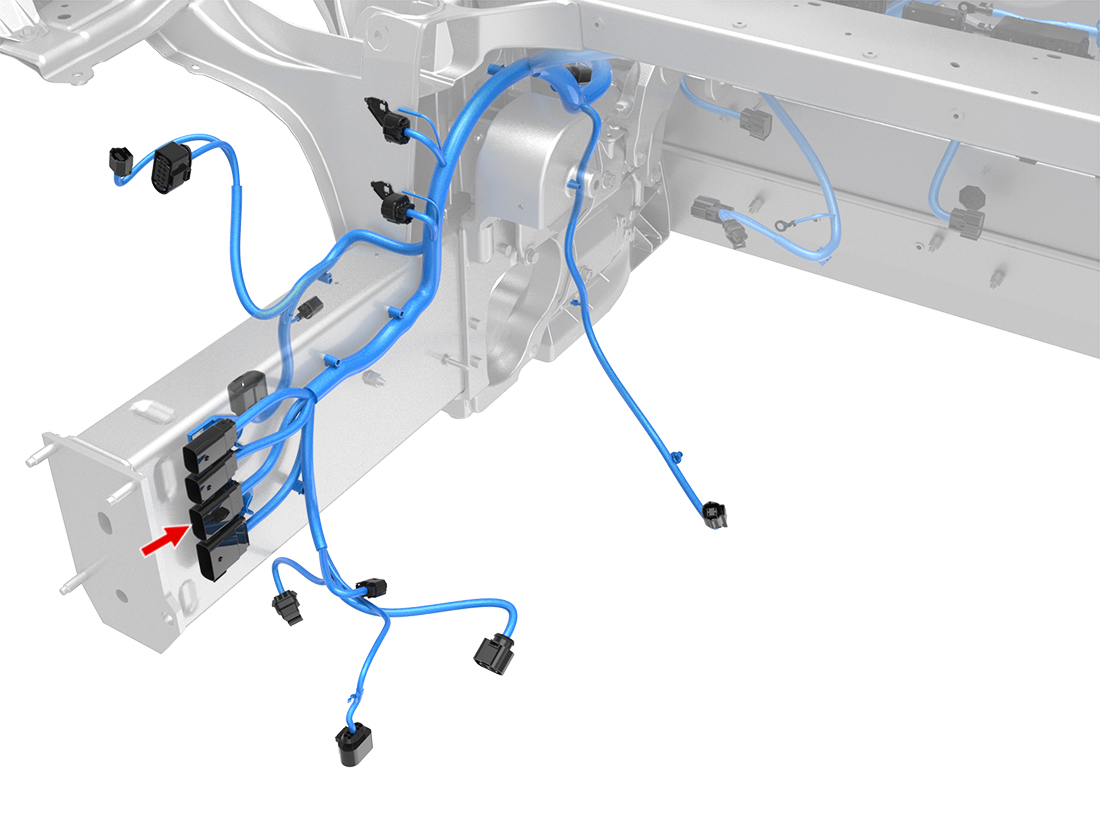

Location:
Connector Detail: molex_33482-1601
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | BU | 0.75 |
| 2 | GY/WH | 0.5 |
| 3 | GY | 0.5 |
| 4 | BK | 0.5 |
| 5 | RD | 0.5 |
| 6 | VT/WH | 0.5 |
| 7 | OG | 0.75 |
| 8 | OG/BK | 0.75 |
| 12 | BN | 0.35 |
| 13 | RD/GN | 0.5 |
| 14 | BN/WH | 0.5 |
