X970M - s-rhd-sop8

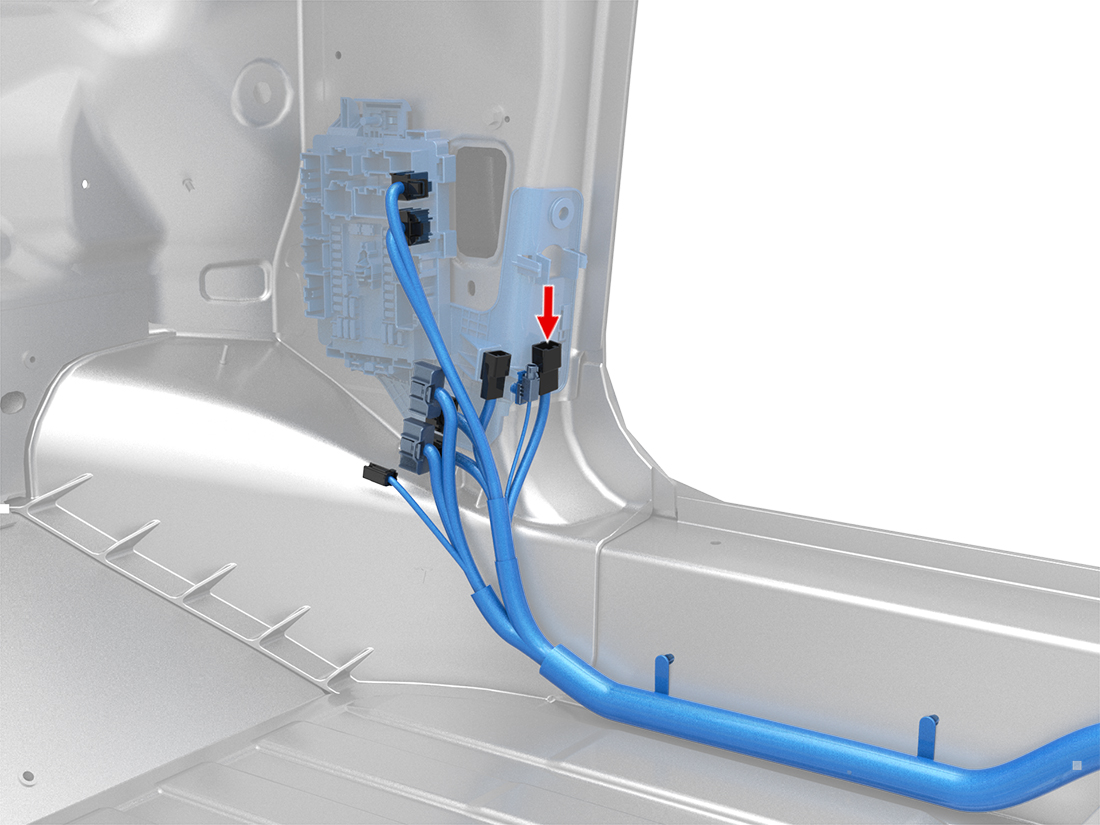

Location:
Connector Detail: sumitomo_6098-5693
Gender:
Color: BU
| Cav | Col | Gauge |
|---|---|---|
| 3 | OG | 1.5 |
| 4 | VT | 1.5 |
| 5 | BU | 0.75 |
| 6 | VT | 0.75 |
| 7 | GN | 0.75 |
| 8 | BK | 0.75 |
