X056

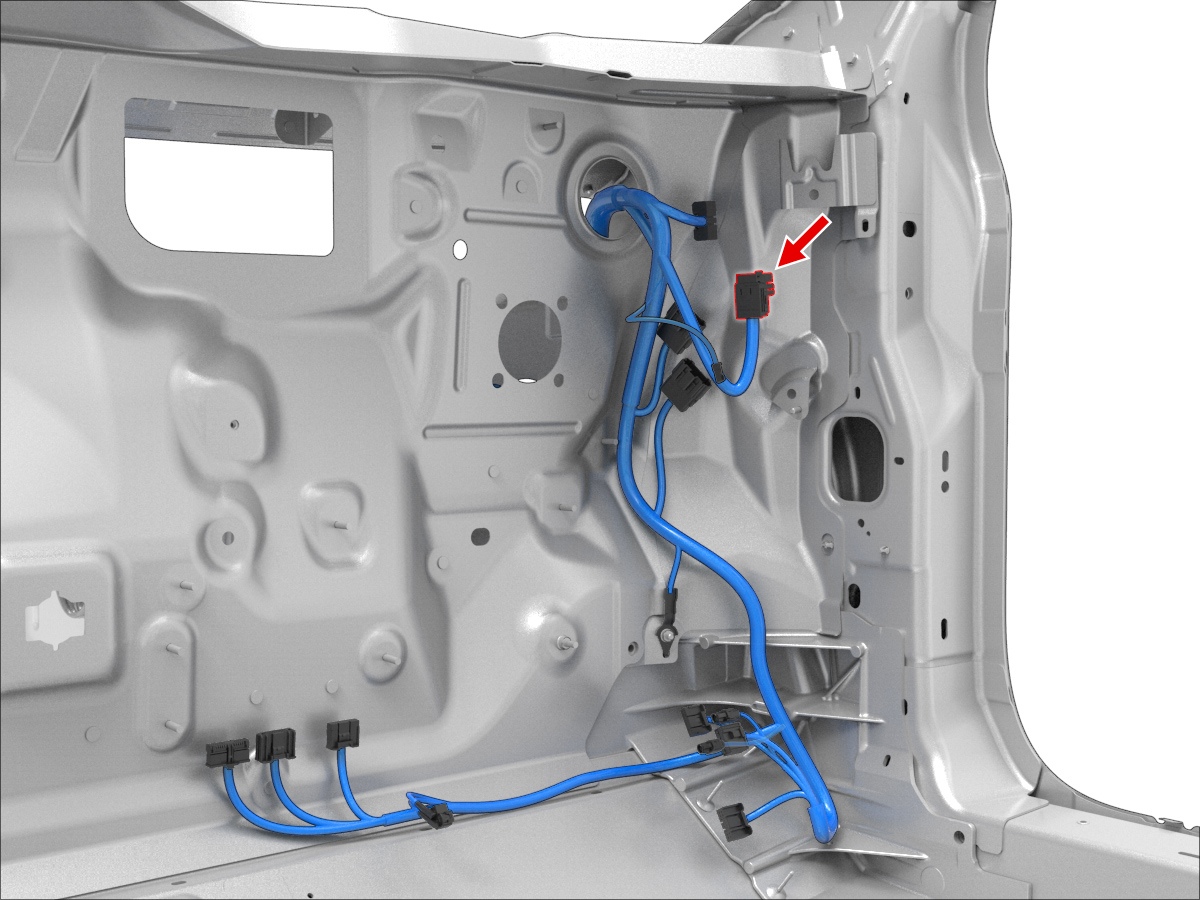

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | LEAR | E00319200 | 6.3x0.8F | RD | 16 | X014 | 1 | ||
| 2 | LEAR | E00319200 | 6.3x0.8F | BK | 6.00 | G140 | 1 |
