X061

Tesla Part Number
1611043-00-A
Connector
SUZHOU-RECODEAL 8.074.185039R
Color
LB

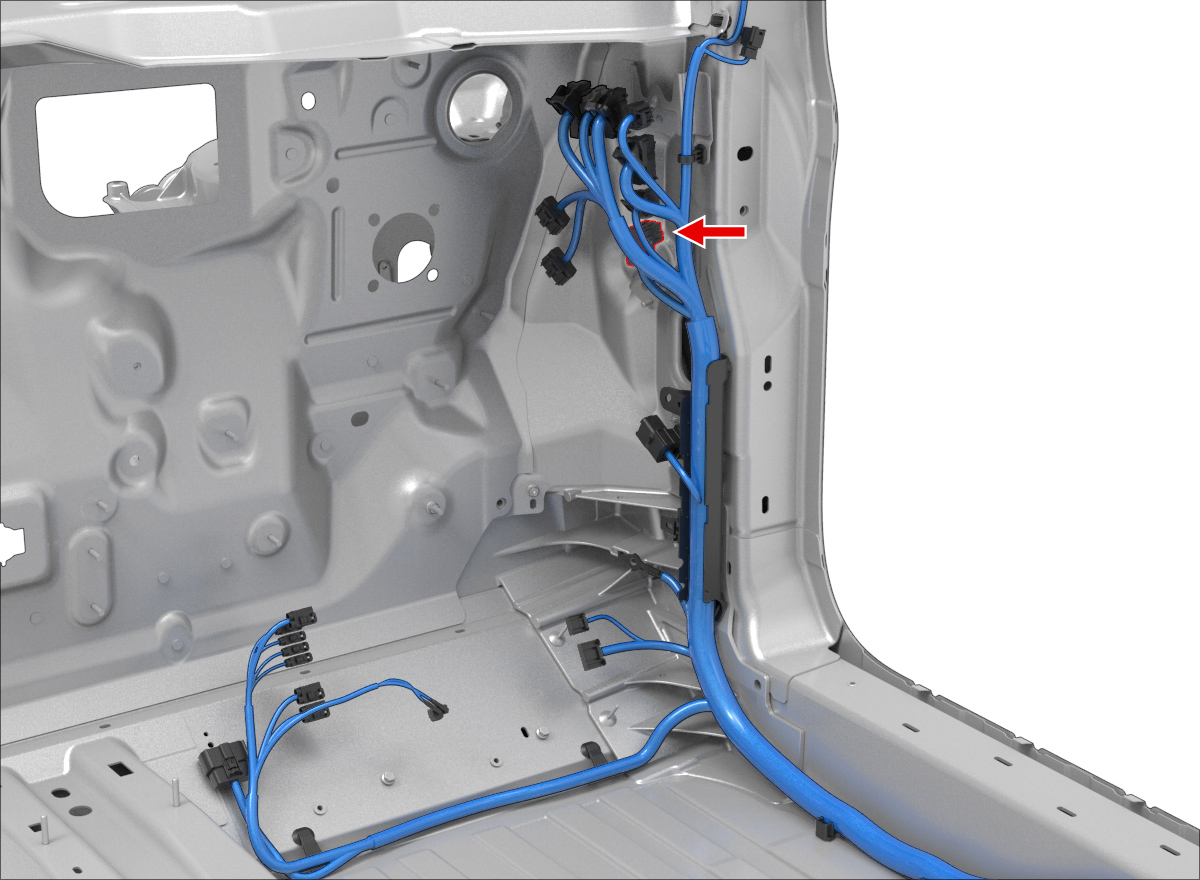

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1LEARE003192006.3x0.8FRD/VT10.00
2unused
