X236

Tesla Part Number
1047563-00-A
Connector
MOLEX 33471-0492
Color
YL

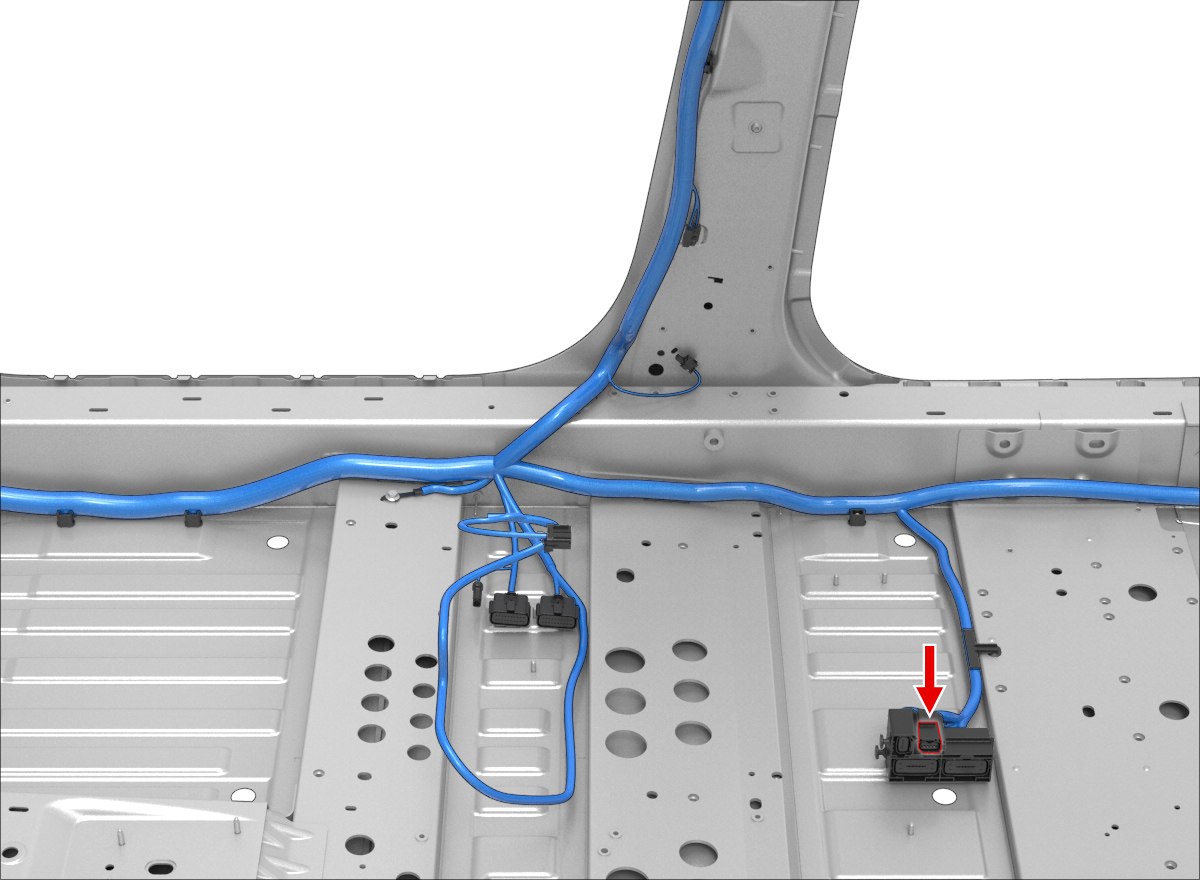

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1MOLEX33001-30061.5x0.8FBU0.35TESLAMAT-120-240X966F12
2MOLEX33001-30061.5x0.8FWH0.35TESLAMAT-120-240X966F13
3MOLEX33001-30061.5x0.8FBK0.35TESLAMAT-120-240G3501
4unused
