X270

Tesla Part Number

1459250-10-A

Connector

DELPHI 15513504

Color

BK

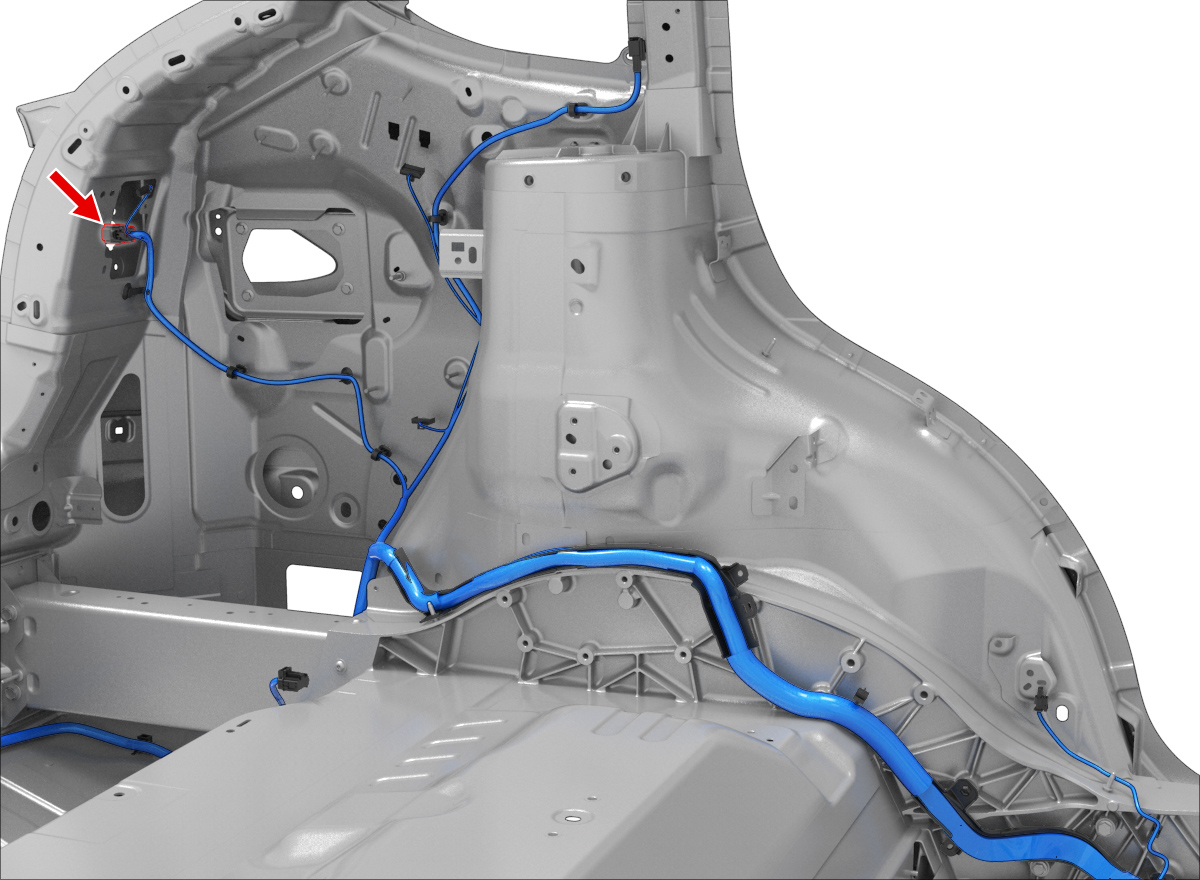

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	DELPHI	35031567	1.5x0.8F	WH	0.35	TESLA	MAT-120-240	X031	31
3	DELPHI	35031567	1.5x0.8F	BU	0.35	TESLA	MAT-120-240	X031	32
4	unused
5	DELPHI	35031567	1.5x0.8F	RD	0.35	TESLA	MAT-120-240	X031	33
6	DELPHI	35031567	1.5x0.8F	BK	0.35	TESLA	MAT-120-240	G290	1
