X376

Tesla Part Number
1111793-00-A
Connector
MOLEX 31403-3100
Color
BK

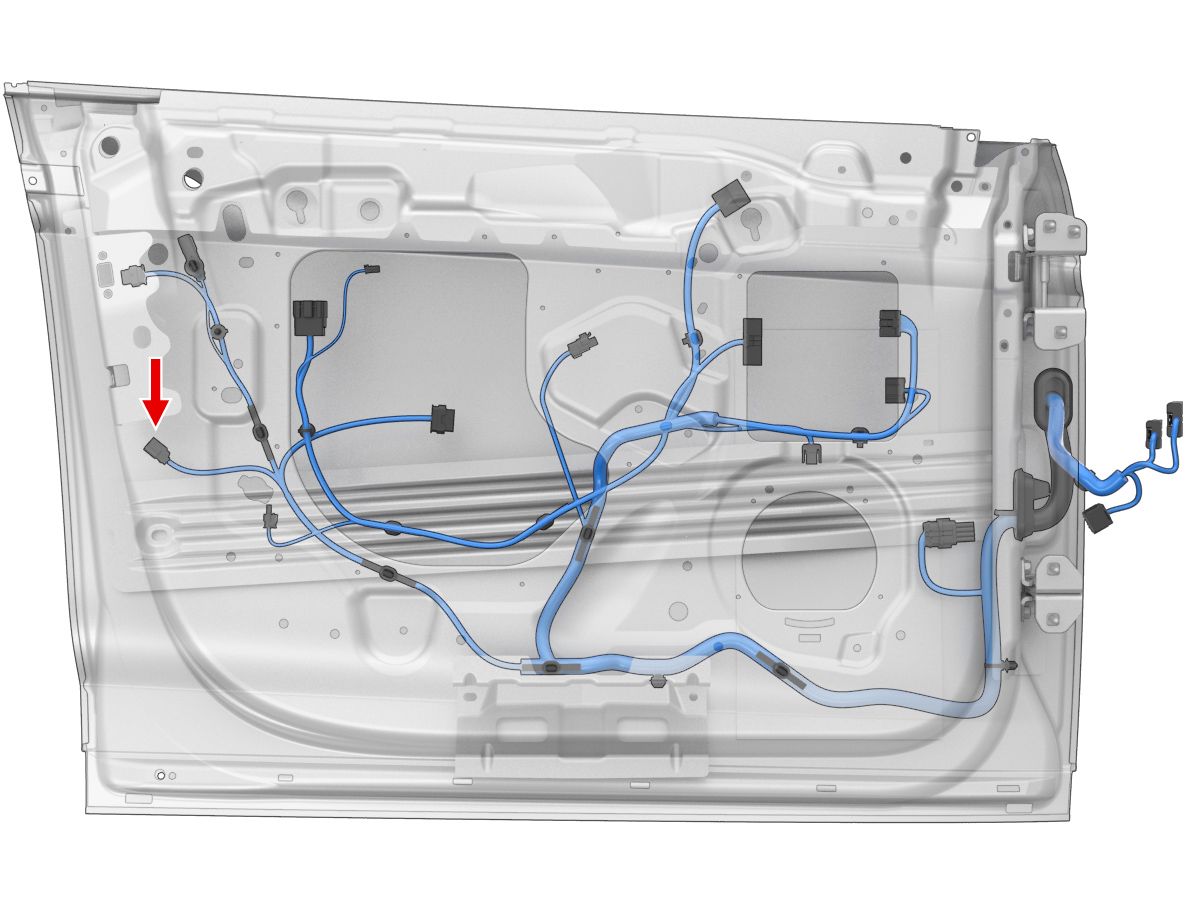

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1MOLEX33468-00220.64x0.64FRD0.35TESLAMAT-120-206X36133
2MOLEX33468-00220.64x0.64FGY0.35TESLAMAT-120-206X36134
3MOLEX33468-00220.64x0.64FBN/YE0.35TESLAMAT-120-206
