X391

Tesla Part Number

1043175-00-A

Connector

SUMITOMO 6098-4831

Color

WH

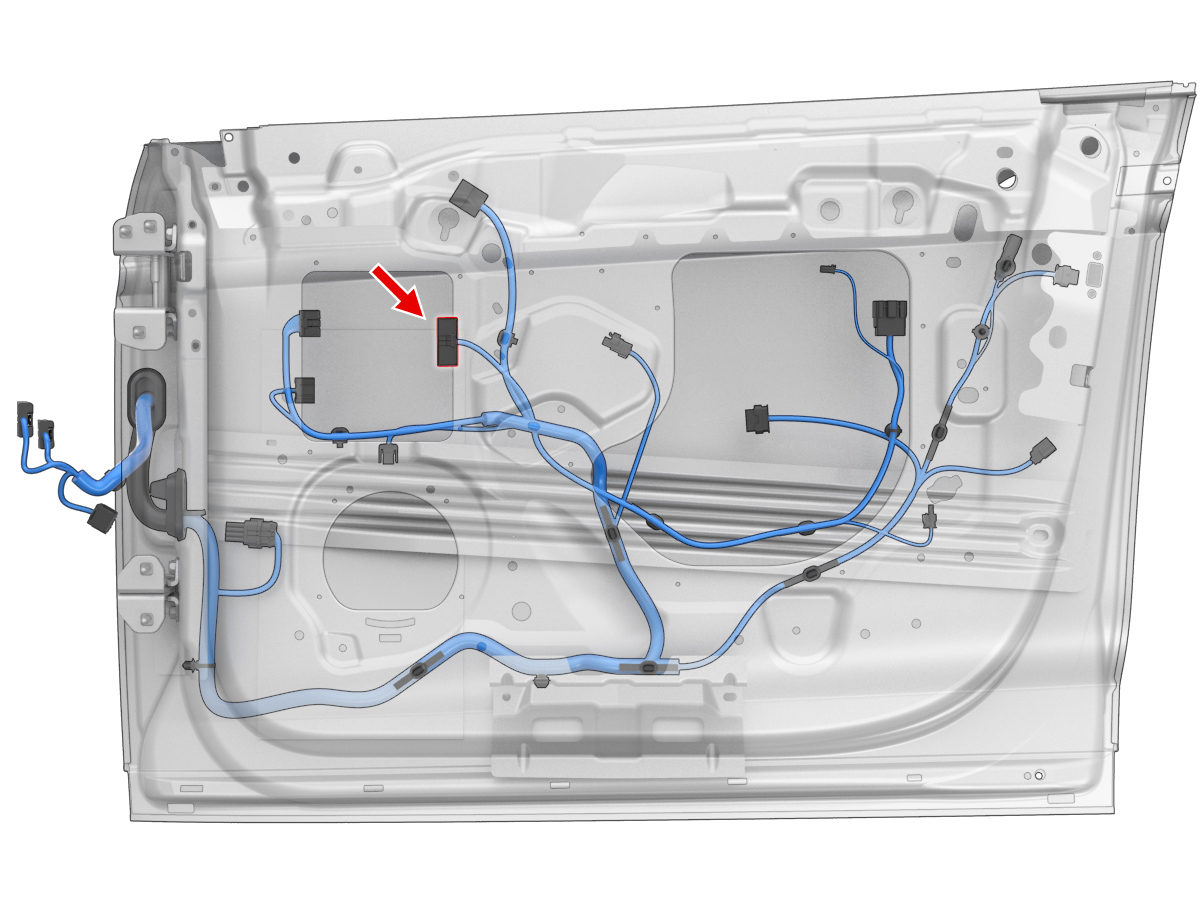

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X477	1
3	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X477	2
4	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X404	17
5	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X922F	17
6	unused
7	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X404	7
8	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X404	18
9	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X404	6
10	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X398	1
11	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X415	3
12	unused
13	SUMITOMO	8100-3625	0.64x0.64F	BN/YE	0.35
14	SUMITOMO	8100-3625	0.64x0.64F	BN/YE	0.35
15	unused
16	unused
17	unused
18	unused
19	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X398	2
20	unused
21	unused
22	SUMITOMO	8100-3625	0.64x0.64F	GY	0.50			X478	2
23	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50			X478	1
24	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X404	20
25	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X404	9
26	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X404	10
27	unused
28	unused
29	unused
30	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X053A	20
31	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.35			X053A	21
32	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X478	3
33	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X476	1
34	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X476	2
35	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X415	2
36	unused
37	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X416	1
38	unused
39	unused
40	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X404	4
