X415

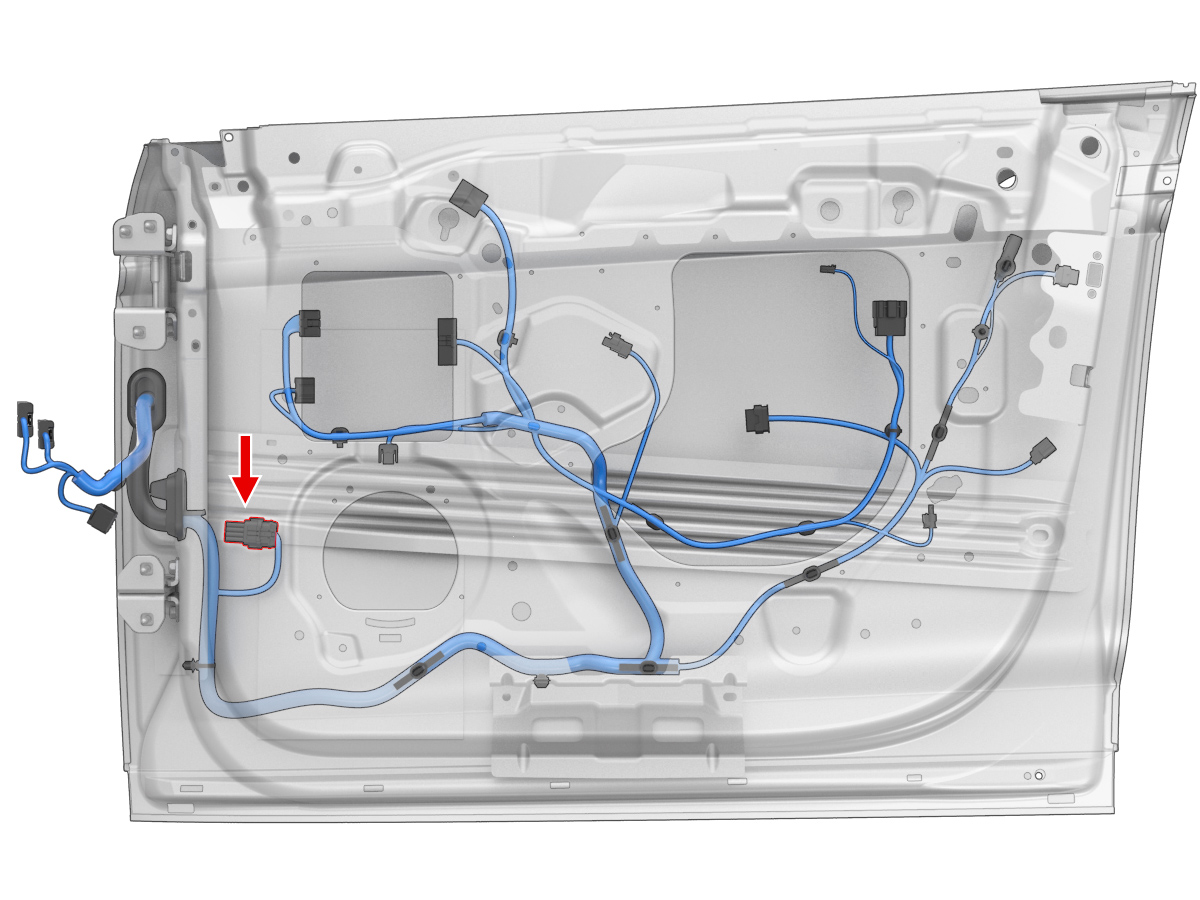

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8100-4174 | 2.3x0.64FS | BN | 1.50 | SUMITOMO | 7165-0472 | X392 | 4 |
| 2 | SUMITOMO | 8240-0263 | 2.3x0.64FS | GN | 0.35 | SUMITOMO | 7165-0474 | X391 | 35 |
| 3 | SUMITOMO | 8240-0263 | 2.3x0.64FS | BU | 0.35 | SUMITOMO | 7165-0474 | X391 | 11 |
| 4 | unused | ||||||||
| 5 | SUMITOMO | 8100-4174 | 2.3x0.64FS | WH | 1.50 | SUMITOMO | 7165-0472 | X392 | 2 |
| 6 | SUMITOMO | 8240-0263 | 2.3x0.64FS | GY | 0.35 | SUMITOMO | 7165-0474 | X393 | 13 |
| 7 | SUMITOMO | 8240-0263 | 2.3x0.64FS | BN | 0.35 | SUMITOMO | 7165-0474 | ||
| 8 | unused | ||||||||
