X561

Tesla Part Number
1108466-00-A
Connector
AMP 2177586-1
Color
BK

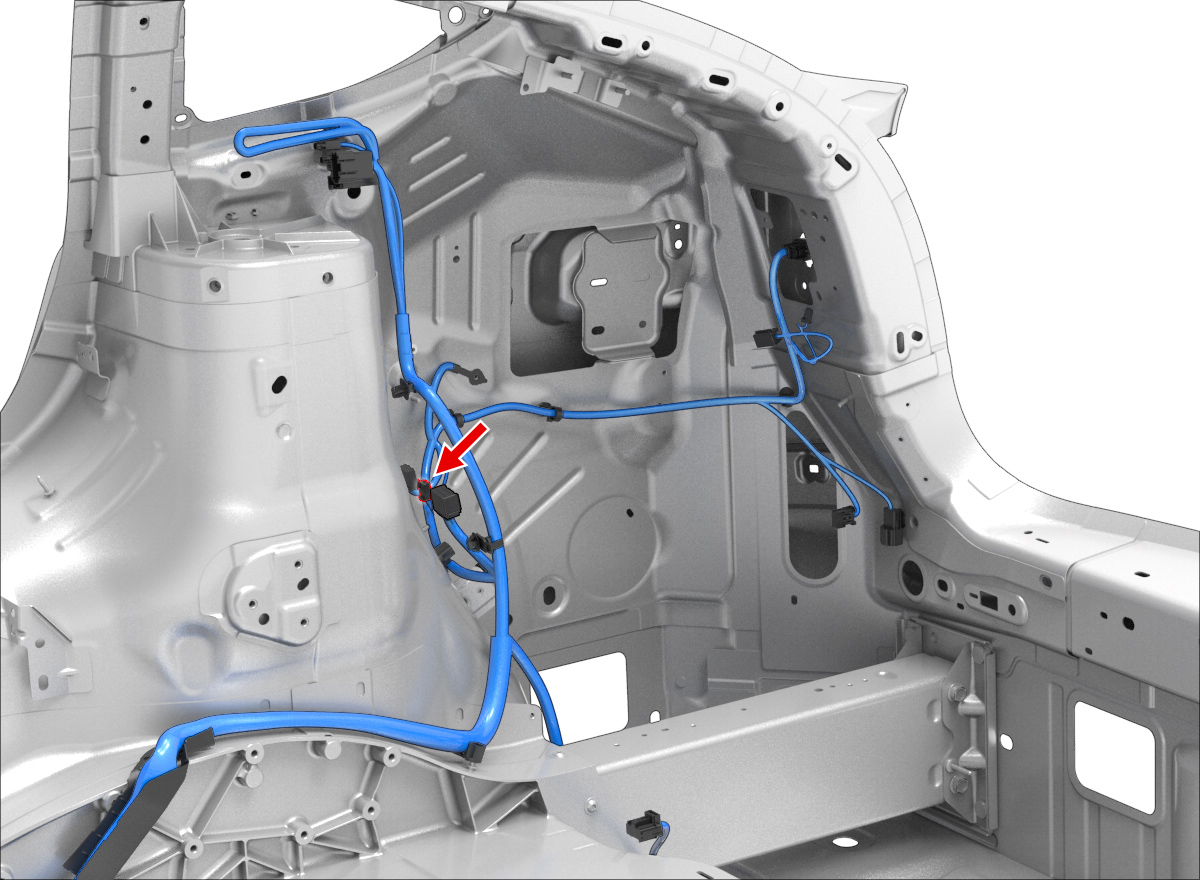

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1unused
2unused
3unused
4unused
5unused
6unused
7AMP2-1703930-10.50x0.40FYE0.35X941M10
8AMP2-1703930-10.50x0.40FWH0.35X941M9
