X563

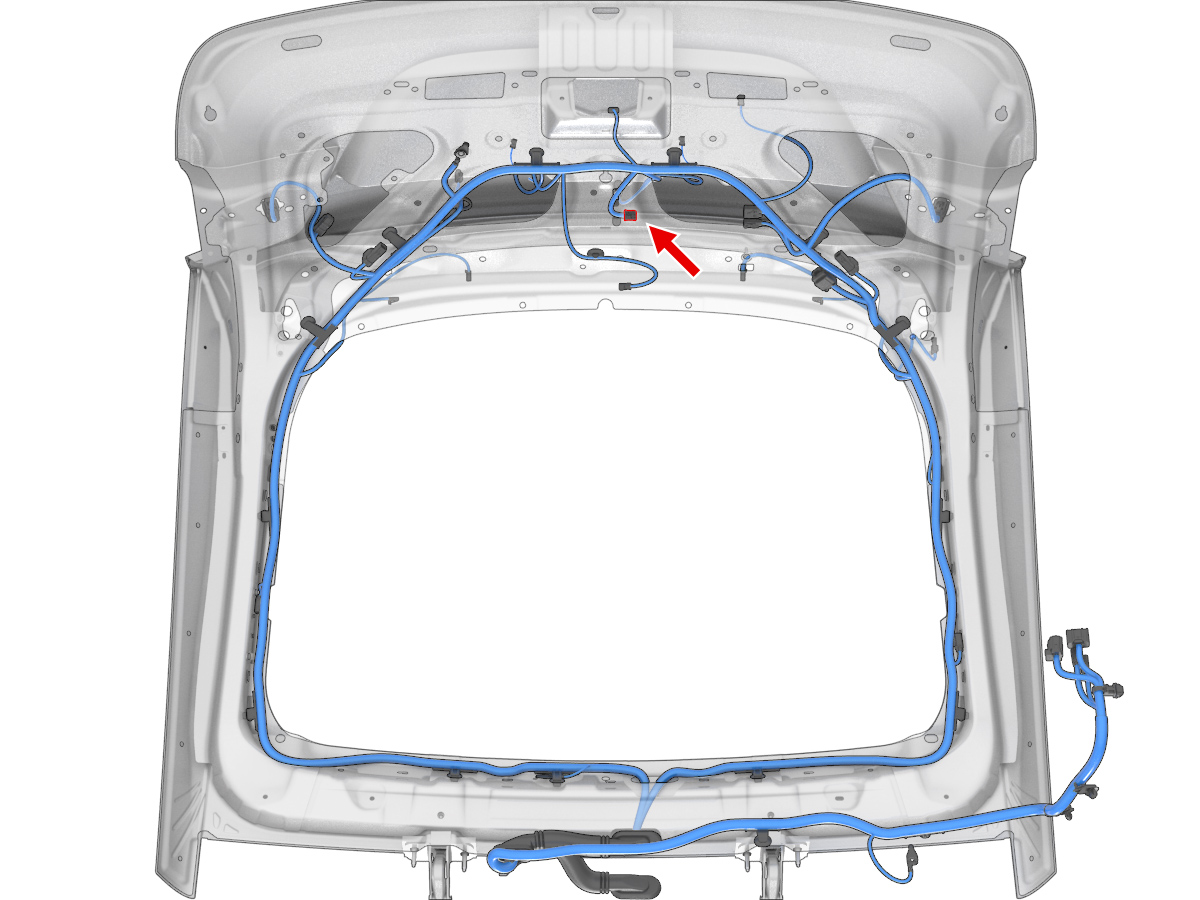

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 2-1703930-1 | 0.50x0.40F | BU | 0.35 | X955F | 5 | ||
| 2 | unused | ||||||||
| 3 | unused | ||||||||
| 4 | AMP | 2-1703930-1 | 0.50x0.40F | BK | 0.35 | G720 | 1 | ||
| 5 | unused | ||||||||
| 6 | unused | ||||||||
| 7 | AMP | 2-1703930-1 | 0.50x0.40F | BU | 0.35 | X954F | 4 | ||
| 8 | unused | ||||||||
| 9 | AMP | 2-1703930-1 | 0.50x0.40F | GN | 0.35 | X954F | 5 | ||
| 10 | unused | ||||||||
