X600

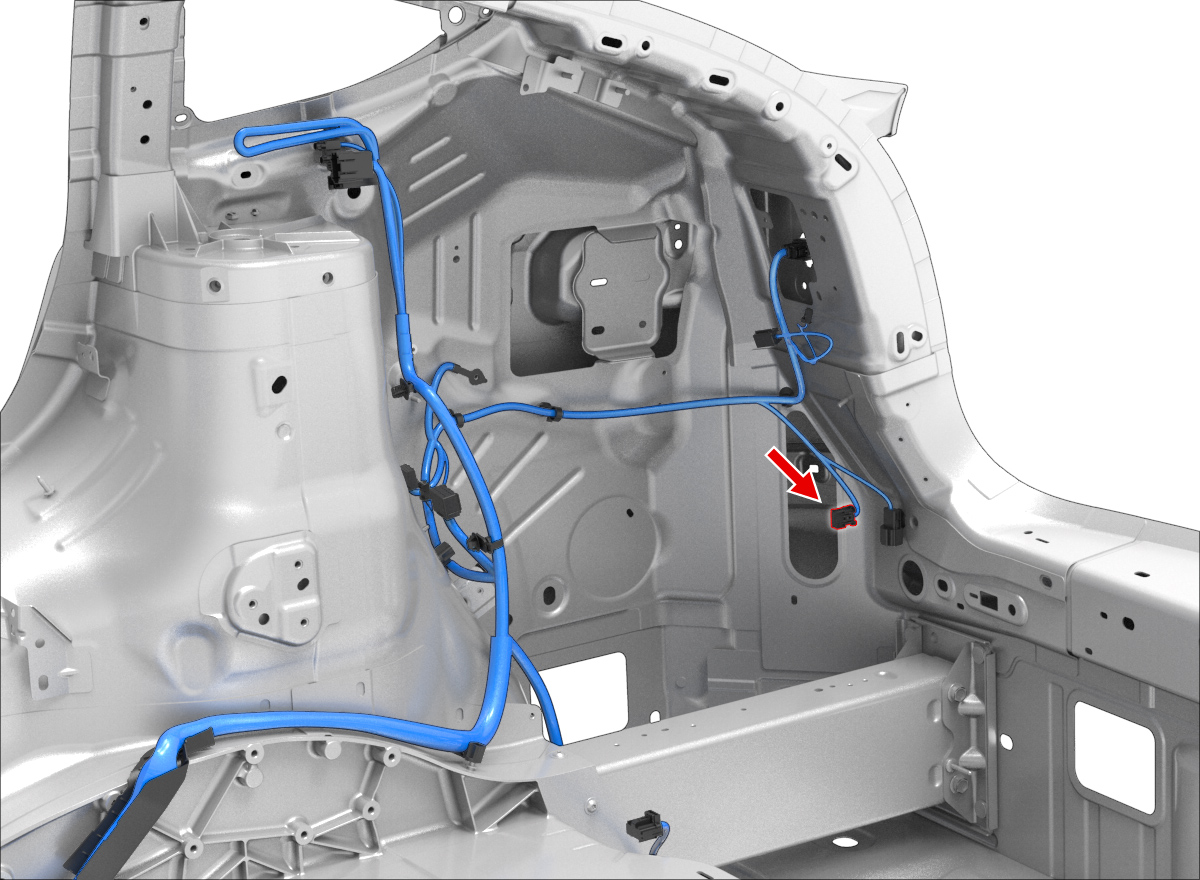

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33012-3021 | 1.5x0.8F | BU | 1.50 | X560 | 9 | ||
| 2 | MOLEX | 33012-3021 | 1.5x0.8F | VT | 1.50 | X560 | 3 | ||
| 3 | MOLEX | 33012-3021 | 1.5x0.8F | RD | 1.50 | X560 | 4 | ||
| 4 | MOLEX | 33012-3021 | 1.5x0.8F | GY | 1.50 | X560 | 10 |
