X781

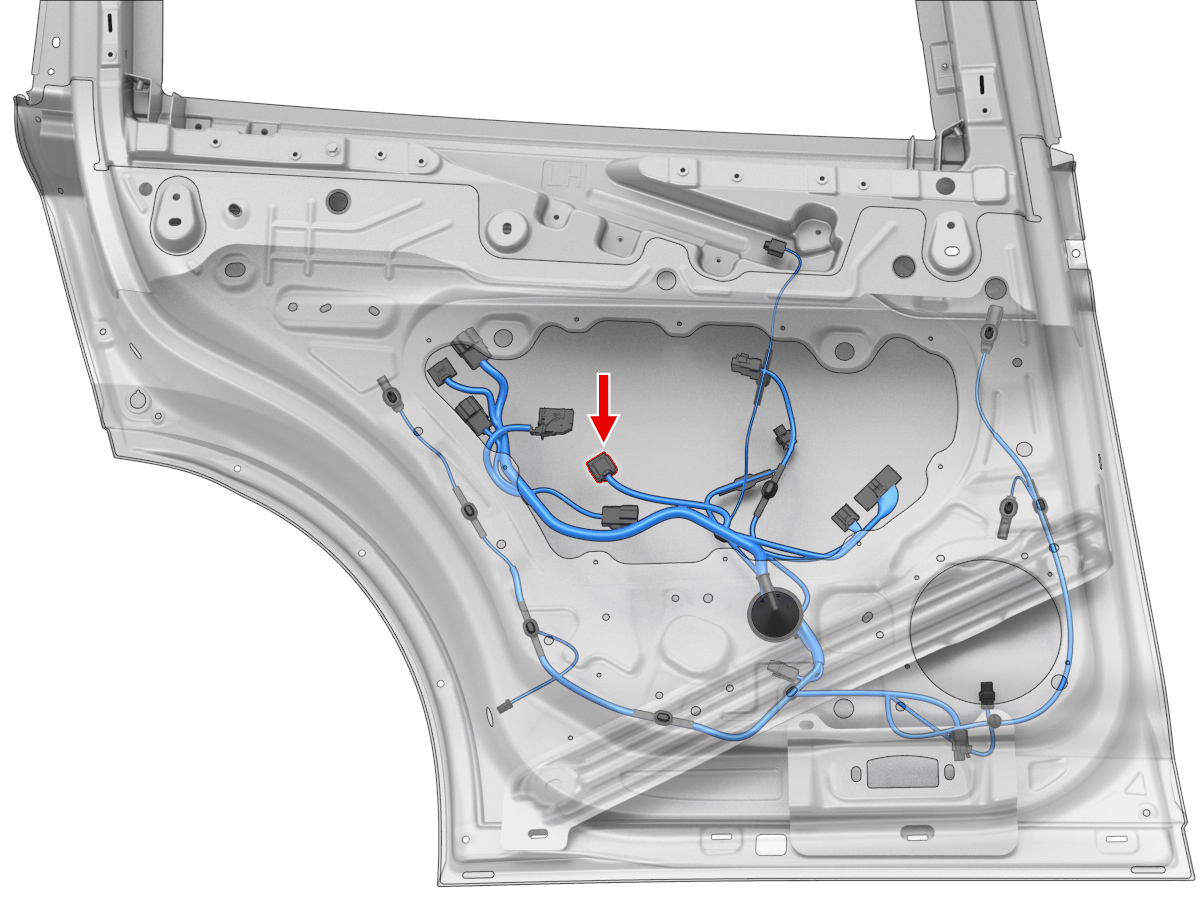

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0214 | 1.5x0.64F | BU | 1.50 | X973M | 1 | ||
| 2 | SUMITOMO | 8240-0214 | 1.5x0.64F | BU | 2.00 | X586 | 1 | ||
| 3 | SUMITOMO | 8240-0215 | 1.5x0.64F | BU | 0.50 | X976M | 1 | ||
| 4 | SUMITOMO | 8240-0214 | 1.5x0.64F | WH | 1.50 | X973M | 9 | ||
| 5 | SUMITOMO | 8240-0214 | 1.5x0.64F | WH | 2.00 | X586 | 2 | ||
| 6 | SUMITOMO | 8240-0215 | 1.5x0.64F | WH | 0.50 | X976M | 7 | ||
| 7 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.50 | X447 | 13 | ||
| 8 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.35 | X434 | 2 | ||
| 9 | SUMITOMO | 8240-0214 | 1.5x0.64F | BK | 1.50 | X423 | 7 | ||
| 10 | SUMITOMO | 8240-0214 | 1.5x0.64F | BK | 1.50 | X973M | 8 | ||
| 11 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.50 | X616 | 2 | ||
| 12 | unused | ||||||||
