X790

Tesla Part Number

1042593-03-A

Connector

SUMITOMO 6098-5718

Color

GY

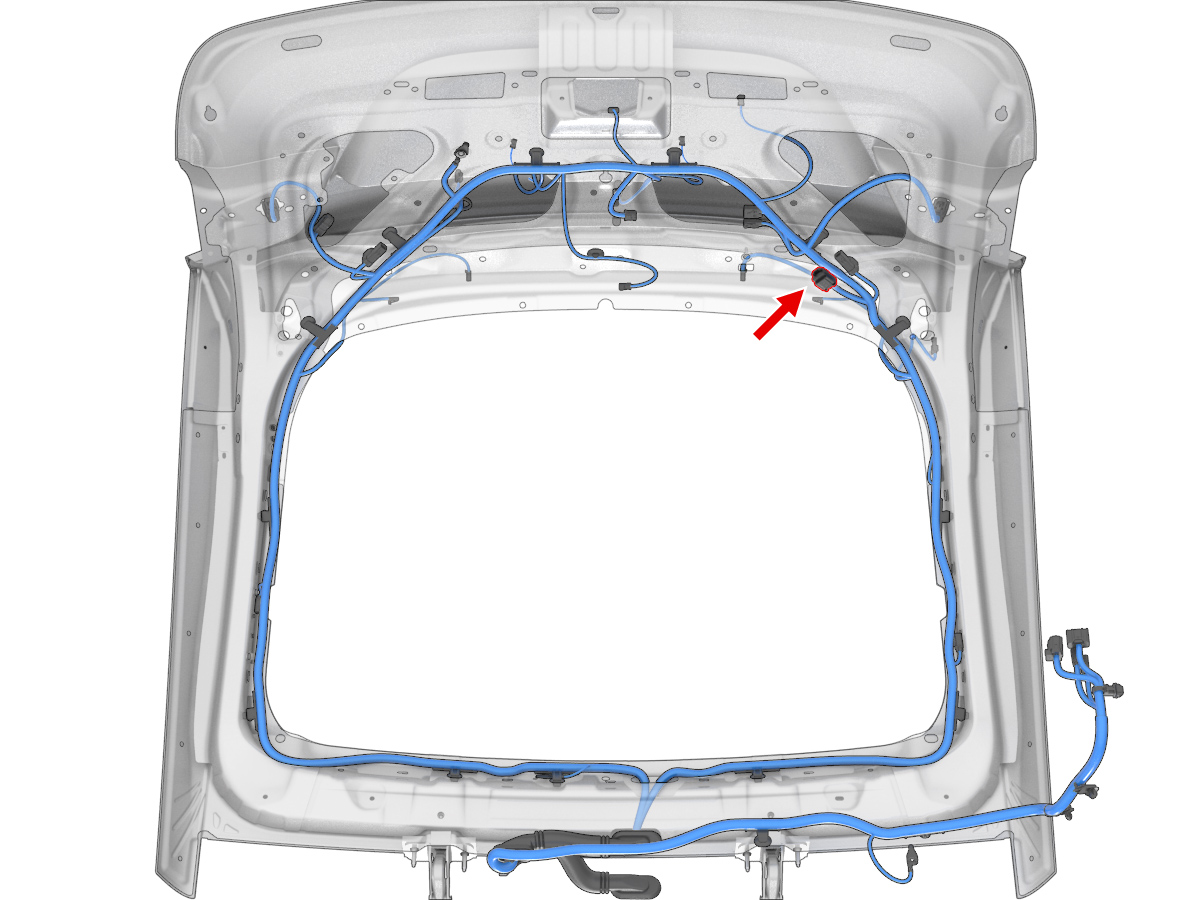

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	VT	1.50			X954F	8
2	SUMITOMO	8240-0215	1.5x0.64F	VT	0.50			X587	1
3	SUMITOMO	8240-0213	1.5x0.64F	VT	0.75			X588	1
4	SUMITOMO	8240-0214	1.5x0.64F	BU	1.50			X954F	1
5	SUMITOMO	8240-0215	1.5x0.64F	BU	0.50			X592	1
6	SUMITOMO	8240-0213	1.5x0.64F	BU	0.75			X593	1
7	SUMITOMO	8240-0214	1.5x0.64F	GN	1.50			X954F	16
8	SUMITOMO	8240-0215	1.5x0.64F	GN	0.50			X587	2
9	SUMITOMO	8240-0213	1.5x0.64F	GN	0.75			X588	2
10	SUMITOMO	8240-0214	1.5x0.64F	YE	1.50			X954F	9
11	SUMITOMO	8240-0215	1.5x0.64F	YE	0.50			X592	2
12	SUMITOMO	8240-0213	1.5x0.64F	YE	0.75			X593	2
