X973F

Tesla Part Number

1486224-00-A

Connector

DELPHI 33257519

Color

BK

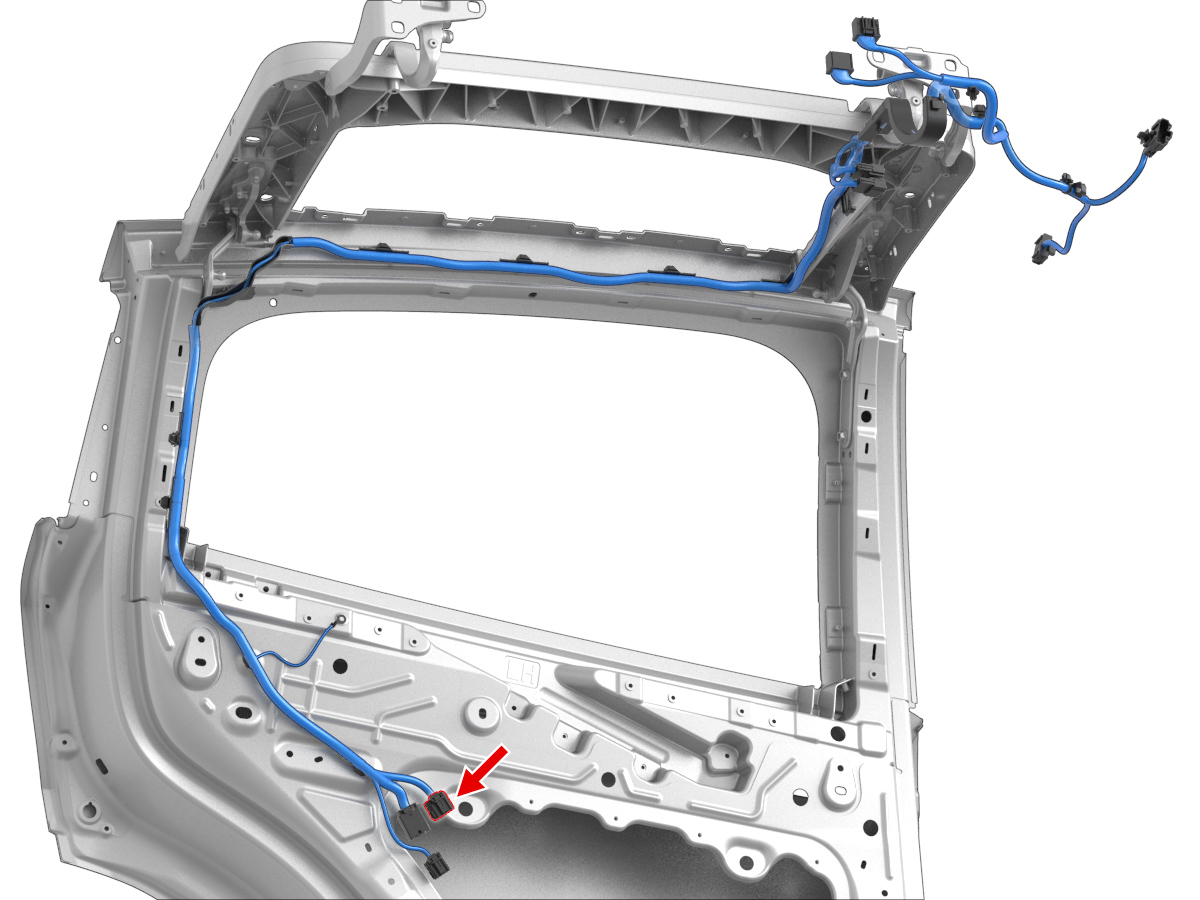

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35072406	1.2x0.6F	BU	1.50			X985M	1
2	DELPHI	35410019	1.2x0.6F	BK	0.35			X985M	17
3	DELPHI	35410019	1.2x0.6F	GY	0.35			X985M	20
4	DELPHI	35410019	1.2x0.6F	YE	0.35			X970F	9
5	DELPHI	35410019	1.2x0.6F	RD	0.35			X970F	19
6	DELPHI	35072404	1.2x0.6F	GY	0.75			X970F	2
7	DELPHI	35410019	1.2x0.6F	GN	0.35			X970F	3
8	DELPHI	35072406	1.2x0.6F	BK	1.50			G600	1
9	DELPHI	35072406	1.2x0.6F	WH	1.50			X985M	11
10	DELPHI	35410019	1.2x0.6F	BU/WH	0.35			X985M	18
11	DELPHI	35410019	1.2x0.6F	BU	0.35			X985M	19
12	DELPHI	35410019	1.2x0.6F	VT	0.35			X985M	16
13	DELPHI	35410019	1.2x0.6F	GN	0.35			X985M	14
14	DELPHI	35410019	1.2x0.6F	TN	0.35			X985M	6
15	unused
16	DELPHI	35072406	1.2x0.6F	BU	1.50			X970F	10
