X981M

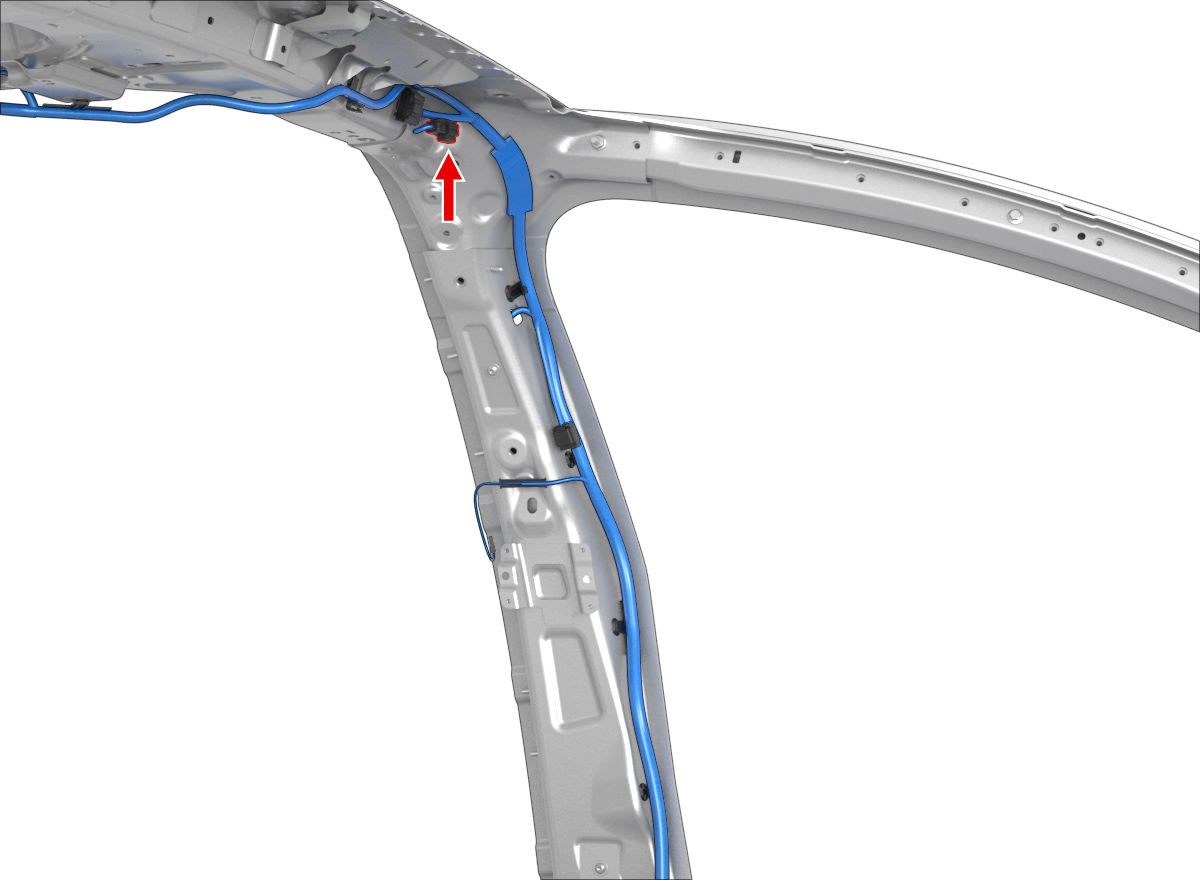

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 35091061 | 1.2x0.6M | BU | 0.75 | X996M | 1 | ||
| 2 | DELPHI | 35091061 | 1.2x0.6M | WH | 0.75 | X996M | 2 | ||
| 3 | DELPHI | 35412744 | 1.2x0.6M | RD | 0.35 | X031 | 23 | ||
| 4 | DELPHI | 35412744 | 1.2x0.6M | YE | 0.35 | X031 | 8 | ||
| 5 | DELPHI | 35091061 | 1.2x0.6M | VT | 0.75 | X996M | 6 | ||
| 6 | DELPHI | 35091061 | 1.2x0.6M | YE | 0.75 | X996M | 5 | ||
| 7 | DELPHI | 35412744 | 1.2x0.6M | GN | 0.35 | X031 | 41 | ||
| 8 | DELPHI | 35412744 | 1.2x0.6M | BN | 0.35 | X039 | 6 |
