X120

Tesla Part Number
1626024-01-A
Connector
SUMITOMO 6098-2769
Color
GY

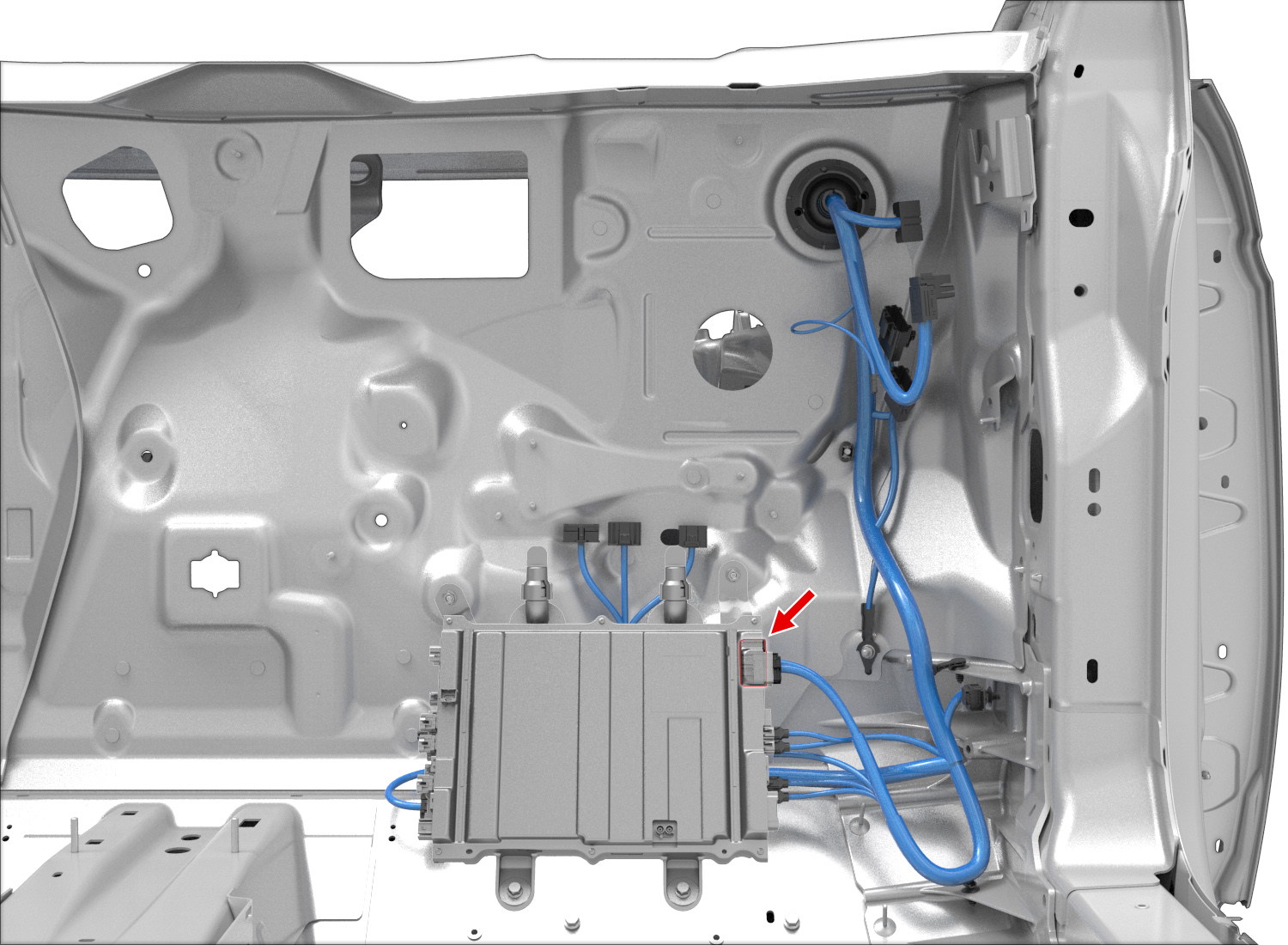

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1SUMITOMO8240-49324.8x0.8FBU4.00X0122
2unused
3SUMITOMO8100-27301.0x0.64FGN/WH0.35
4SUMITOMO8100-27301.0x0.64FGN0.35
5SUMITOMO8100-27301.0x0.64FWH0.35X906F8
6SUMITOMO8100-27301.0x0.64FYE0.35X906F9
7unused
8unused
9unused
10unused
11SUMITOMO8100-27301.0x0.64FGN0.50X5802
12SUMITOMO8100-27301.0x0.64FBN/WH0.35
13SUMITOMO8100-27301.0x0.64FBN0.35
14unused
15unused
16unused
17unused
18unused
19unused
20SUMITOMO8100-27301.0x0.64FVT0.50X5801
