X2002_1

Tesla Part Number
1015268-00-A
Connector
MOLEX 31372-1000
Color
BK

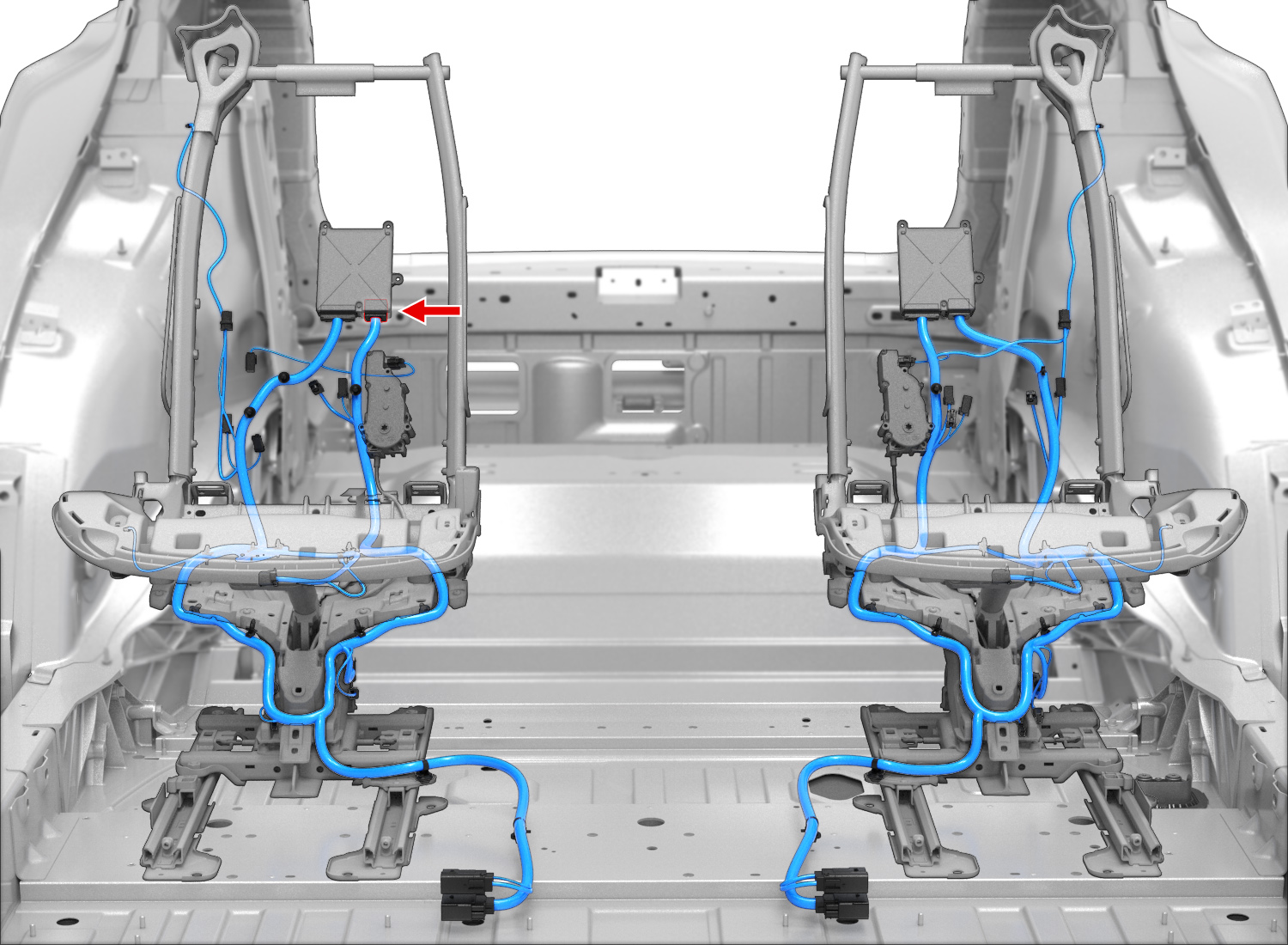

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1MOLEX33012-30011.5x0.8FRD2.00X2006_11
2MOLEX33012-30011.5x0.8FVT2.00X2006_12
3MOLEX33012-30011.5x0.8FTN2.00X2006_13
4unused
5MOLEX33012-30011.5x0.8FGY2.00X2007_13
6MOLEX33012-30011.5x0.8FYE2.00X2007_11
7YAZAKI7116-4112-022.8x0.8FBK2.50
8YAZAKI7116-4111-022.8x0.8FYE0.75
9YAZAKI7116-4111-022.8x0.8FWH0.75X936M9
10YAZAKI7116-4112-022.8x0.8FBU2.50X936M1
