X2006

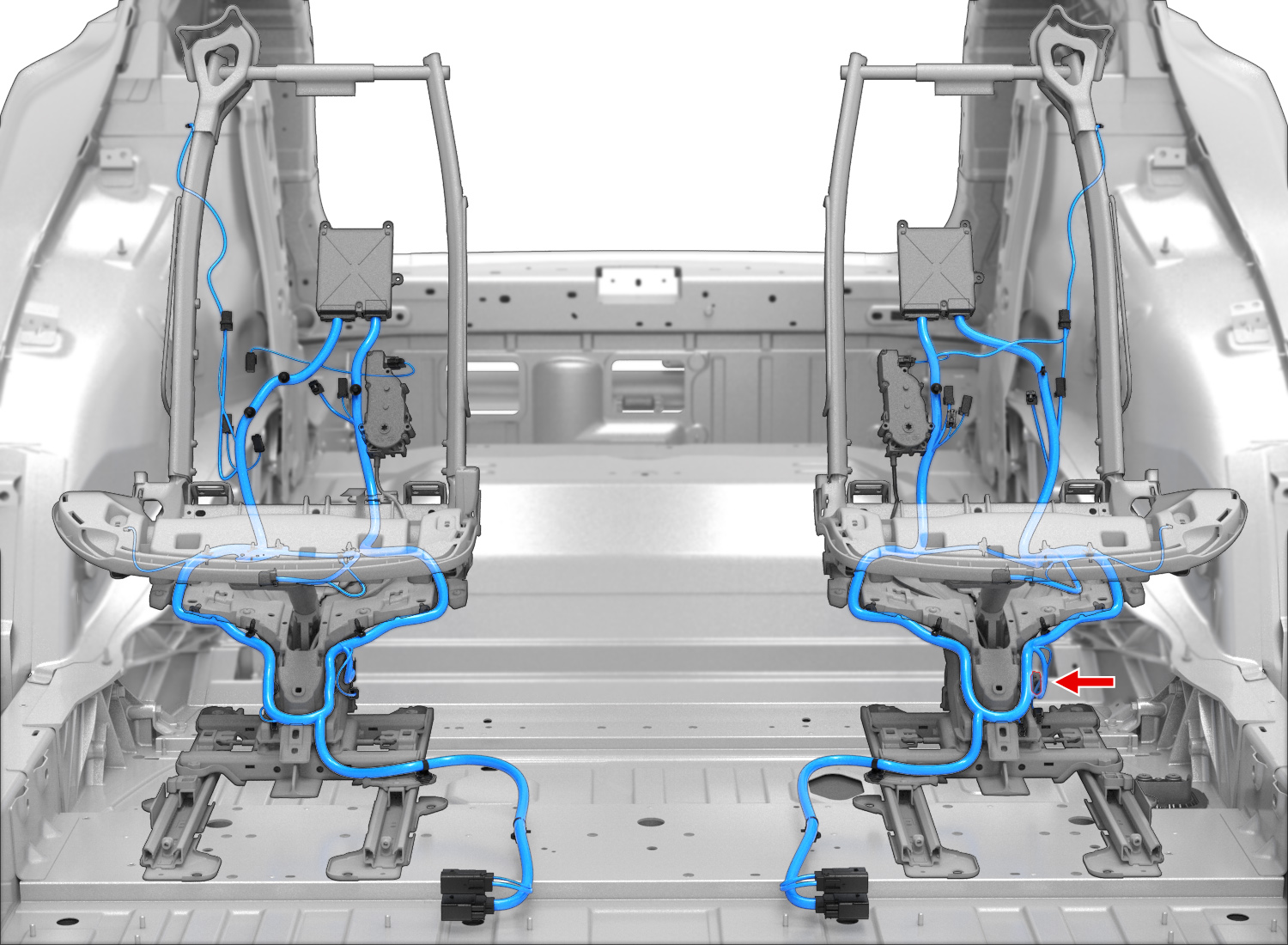

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 927768-3 | 2.8x0.8F | RD | 2.00 | X2002 | 1 | ||
| 2 | AMP | 927768-3 | 2.8x0.8F | VT | 2.00 | X2002 | 2 | ||
| 3 | AMP | 927768-3 | 2.8x0.8F | TN | 2.00 | X2002 | 3 | ||
| 4 | AMP | 927774-3 | 2.8x0.8F | BU | 0.35 | X2003 | 33 | ||
| 5 | AMP | 927774-3 | 2.8x0.8F | VT | 0.35 | X2003 | 32 | ||
| 6 | AMP | 927774-3 | 2.8x0.8F | WH | 0.35 | X2003 | 31 | ||
| 7 | AMP | 927774-3 | 2.8x0.8F | GN | 0.35 | X2003 | 34 | ||
| 8 | AMP | 927774-3 | 2.8x0.8F | YE | 0.35 | X2003 | 28 |
