X2006_1

Tesla Part Number
1075248-00-A
Connector
AMP 963120-1
Color
GY

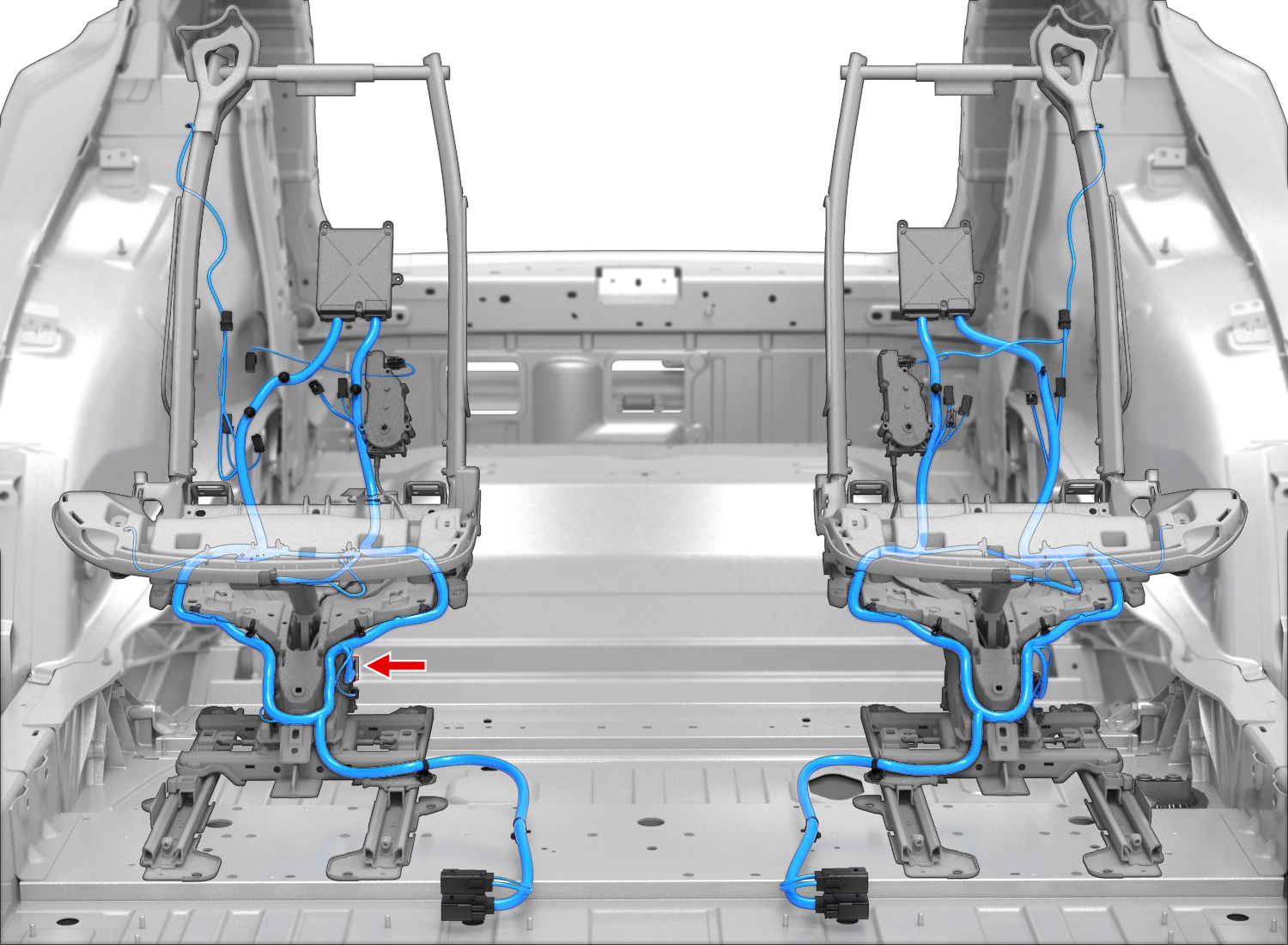

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP927768-32.8x0.8FRD2.00X2002_11
2AMP927768-32.8x0.8FVT2.00X2002_12
3AMP927768-32.8x0.8FTN2.00X2002_13
4AMP927774-32.8x0.8FBU0.35X2003_133
5AMP927774-32.8x0.8FVT0.35X2003_132
6AMP927774-32.8x0.8FWH0.35X2003_131
7AMP927774-32.8x0.8FGN0.35X2003_134
8AMP927774-32.8x0.8FYE0.35X2003_128
