X817

Tesla Part Number
1783747-01-A
Connector
ROSENBERGER 59Z066-L00-B
Color
WH

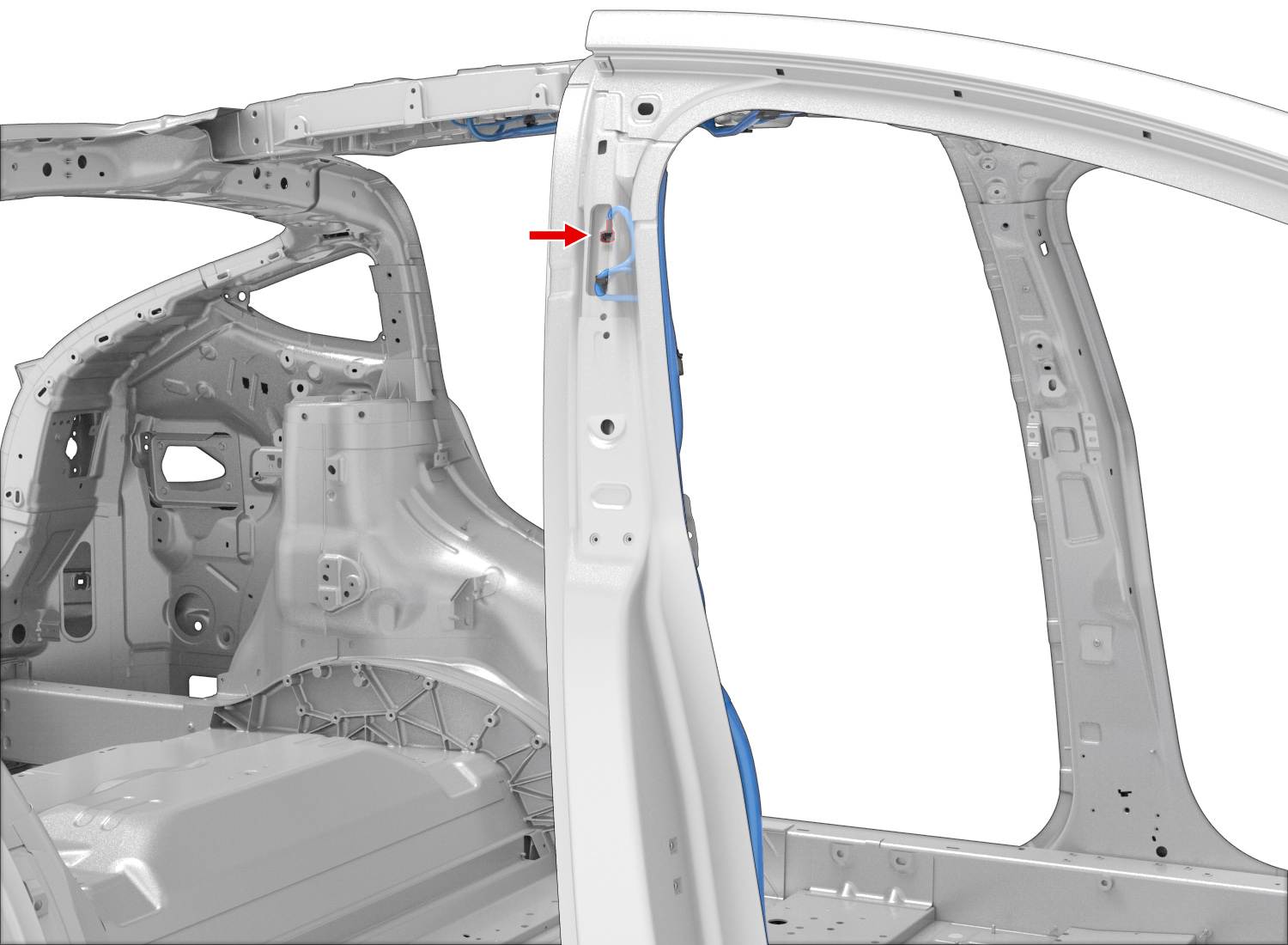

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1ROSENBERGER59K28H-102A4COAXBKD462X8684
