X894F

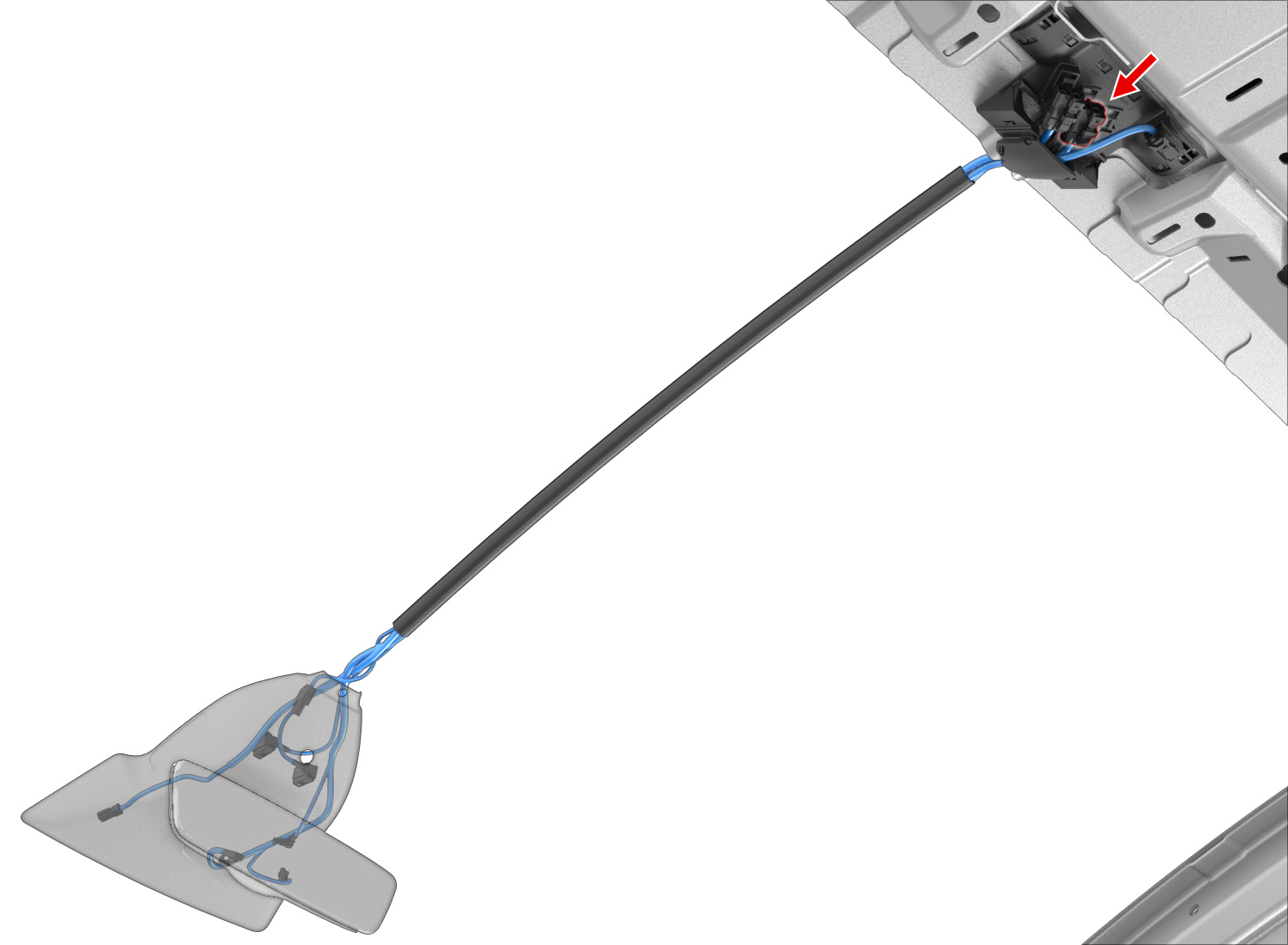

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ROSENBERGER | 59K16B-1M4T4 | COAXF | BK | D302 | X898 | 1 | ||
| 2 | ROSENBERGER | 59K16B-102T4 | COAXF | BK | D462 | X834 | 1 |
